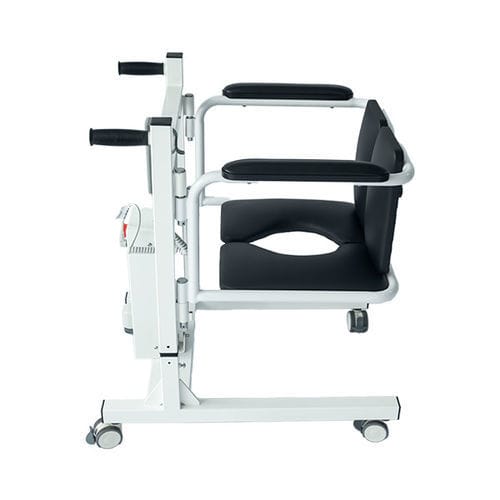

Electric transfer chair A06-E

indoorcommodeheight-adjustable

Product Overview
The A06-E is an electric seated transfer device for clinical and home-care environments. It features a reinforced square steel-tube frame and a 24V electric linear actuator system with a rated load of 120 kg. The patented 180° rear-opening split seat, combined with one-button electric lifting controlled by a wired hand controller, enables transfers with minimal manual handling by caregivers.

Core Selling Points

• 120 kg load capacity with reinforced square-tube support for greater stability and torsional rigidity.
• One-button electric lift using a high-torque actuator for precise, smooth height adjustment without manual effort.
• 180° rear-opening patented split seat for straightforward seating from behind, reducing caregiver lifting and preserving user dignity.
• Industrial square-tube construction with medical-grade electrostatic coating: corrosion-resistant and easy to disinfect for wet environments.
• Four-in-one functionality: mobility aid, indoor wheelchair, toilet chair and shower stool to simplify equipment needs in care settings.

Details

• 24V electric drive and high-spec control unit for reliable operation.
• Wired hand controller allows caregivers to position and adjust the device precisely.
• Safety features include an emergency stop button, double back-locking latches and an independent foot brake.
• Long battery autonomy supported by high-capacity rechargeable battery packs for frequent relocations.
• Square-tube frame maintains stability at full load and extended height.
• 180° rear split opening achieved by mechanical latches; facilitates alignment with bed or wheelchair surfaces.
• Waterproof, easy-clean seat cushion and pull-out toilet bowl for hygiene maintenance.
• Omnidirectional silent casters with independent brakes; front wheels optimized for steering, rear wheels for traction on tiled floors.

Technical Parameters

• Model: A06-E Series (Square Tube Electric Version)
• Drive: 24V fully electric linear actuator system
• Rated load: 120 kg (enhanced grade)
• Frame material: Reinforced square steel tube
• Seat opening: 180° rear split opening (patented)
• Safety: Emergency stop button, double back-locking latches, independent foot brake
• Accessories: Waterproof comfort mat, high-capacity rechargeable battery pack, special toilet bowl
• Wheels: Omnidirectional silent wheels with independent brakes
