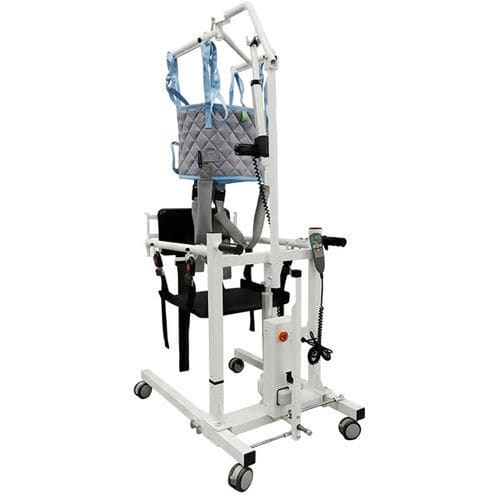

Electric patient lift A11

on castersfor disabled peoplewheelchair

Product overview
The A11 is a multi-function patient care device designed for people with disabilities, partial disabilities and limited mobility. It combines electric transfer, toileting/bathing support and an assisted-walking mode in a dual-system configuration (sitting transfer + walking-assist lift). Constructed from high-strength welded square tubular steel with automotive-grade fasteners, the unit provides secure, stable handling with a 120 kg rated load.

Key features

• Sturdy square-tube frame: industrial-grade welded cold-rolled square tubes for improved torsional resistance and load stability versus round-tube frames.
• 120 kg rated load: engineered for smooth, stable lifting across a range of user body types.
• Fully electric precision lifting: one-button hand controller for accurate height adjustment and reduced caregiver strain.
• Openable base: adjustable base width via foot pedal or manual lever to allow narrow-passage navigation and flush transfers to wheelchairs, beds or sofas.
• Safety-focused details: hanging hooks with automotive-grade locking buckles; optional seat with central opening for toileting/bathing; medical-grade silent swivel casters with brakes for secure positioning.
• Assisted-Walking Mode: dedicated electric auxiliary walking frame with dual-frame linkage and compatible walking sling to reduce lower-limb load and enable gait training and early rehabilitation.

Technical specifications

• Model: A11
• Functions: electric transfer; toileting and bathing; assisted walking (dual-system: sitting transfer + walking-assist lift)
• Structure: high-strength welded square tubular steel frame, thickened cold-rolled square tubes
• Rated load: 120 kg
• Operation: fully electric precision lifting with one-button hand controller; base width adjustable by foot pedal or manual lever
• Lifting height: 400 mm – 1900 mm (configuration-dependent)
• Safety fasteners: automotive-grade dedicated buckles on hanging hooks
• Mobility: medical-grade silent swivel casters with brakes
• Optional features: portable toilet seat (standard); auxiliary walking frame (optional); open-top toilet seat (optional); special hanging bag with central opening (optional)
• Rehabilitation support: compatible with walking sling for reduced lower-limb load and gait training

Applications and optional accessories

• Suitable for hospitals, rehabilitation centers, nursing homes and home care environments where safe patient transfer and early mobilization are required.
• Standard portable toilet seat included; optional auxiliary walking frame and open-top toilet seat available to adapt the A11 to clinical or home-care workflows.
