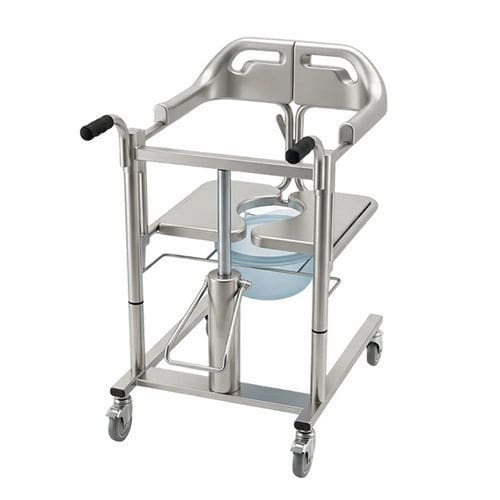

Indoor transfer chair A04

commodeergonomicheight-adjustable

Product Overview
The A04 is a multifunctional nursing transfer device combining patient relocation, toileting and shower use. Constructed from high-strength round stainless steel tubing with anti-corrosion coating, it has a rated load of 100 kg. Key components include a foot-operated hydraulic lift and a 180° rear-opening split seat that enable safe transfers between beds, sofas, wheelchairs and toilets without manual lifting. Suitable for home care, nursing homes and hospital wards.

Core Features

• 180° rear-opening split seat: Split backrest opens horizontally to left and right so a user can be transferred into the seat without standing, enabling near-zero-movement transfers.
• Foot-operated hydraulic lift: High-performance hydraulic unit with pedal control and adjustable descent valve for precise height control without reliance on batteries or mains power.
• Circular stainless steel frame: Thick-walled round stainless tubes with electrostatic coating for corrosion resistance and a discreet appearance for domestic or clinical environments.
• Five-in-one functionality: Functions as a transfer device, mobile wheelchair, toilet chair, shower stool and simple dining seat to reduce equipment count and save indoor space.
• Medical-grade silent brake casters: Four independent brakes, swivel front casters and large rear casters for stable grip and safe operation on wet surfaces.

Details

• 1. Zero-lifting transfer: 180° split backrest enables dignified transfers while reducing lumbar strain for caregivers compared with manual multi-person lifts.
• 2. Precise foot hydraulic control: Built-in hydraulic power unit operated by pedal; smooth ascent and controlled descent via adjustment valve to prevent sudden drops.
• 3. Waterproof design for toilet and shower use: All-steel tubing with anti-corrosion treatment and electrostatic coating; includes a detachable large-capacity bedpan with pull-out design for hygiene and easy cleaning.
• 4. Safety-focused details: Dual locking (safety latch and seat belt) to prevent accidental opening during transfer; ergonomic non-slip rubber handrails for controlled maneuvering.

Technical Parameters

• Product model: A04 Series (Hydraulic)
• Body material: High-strength round stainless steel tubing
• Lifting method: Foot-operated hydraulic drive
• Rated load: 100 kg
• Opening angle: 180° (rear opening)
• Base width: Compatible with interior door widths ≥ 60 cm
• Standard accessories: Special seat cushion; large-capacity detachable bedpan
• Applicable environment: Home, nursing home, hospital ward
