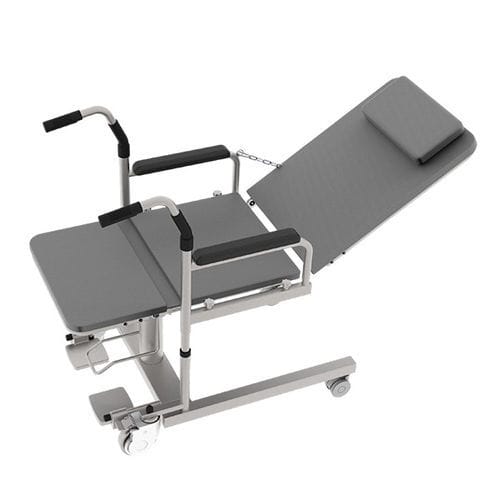

Shower chair with armrests A22

on casterswith footrestwith backrest

Product Overview
The A22 is a hydraulic repositioning shower chair designed for disabled elderly and rehabilitation patients. It integrates a manual hydraulic lifting system, stepless 0°–90° back and foot adjustments, and 360° seat rotation to facilitate transfers, bathing, toileting and short rest during care.

Core details introduction

• Core power source: High-performance hydraulic lifting system
  • No electricity required: Industrial-grade hydraulic pump with foot-pedal operation enables smooth lift/lower without batteries or electric risk, suitable for wet environments such as bathrooms.
  • 100 kg safe load: Reinforced metal frame and hydraulic jack provide stable support for rated load up to 100 kg.
• Comfort and adjustability: Linked back and leg adjustment system
  • Stepless 0°–90° adjustment: Backrest and footrest independently adjustable within 0°–90° for upright sitting, semi-recline or supine positions for washing, hair care or rest.
  • Integrated headrest: Provides neck support during prolonged sitting or showering.
• Space-saving transfer solution: 360° omnidirectional rotation
  • Armrest release for rotation: When the armrest is lifted, the seat unlocks and rotates 360° to simplify lateral transfers.
  • Zero-distance connection: Allows direct alignment with beds, wheelchairs or toilets to minimise transfer devices and ease relocation in narrow spaces.
• Bathroom-grade materials and safety features
  • Waterproof, quick-dry seat pads: Corrosion- and mildew-resistant soft pads (seat and back) for hygiene after showering.
  • Fold-up foot pedal: Flip-up foot pedal reduces trip risk when boarding or alighting.

Technical specifications
Performance indicators: Technical parameters
Product model: A22
Lifting power: Manual hydraulic system (foot-pedal operation)
Rated load: 100 kg
Adjustment range: Back: 0°–90° (stepless) / Feet: 0°–90° (stepless)
Special features: 360° seat rotation (with armrests extended)
Mobility: Four independent silent swivel wheels with brakes
Applicable functions: Transfer, bathing, toileting, short rest during rehabilitation

Technical details / specifications

• Model: A22
• Lifting power: Manual hydraulic system (foot-pedal)
• Rated load: 100 kg
• Backrest adjustment: 0°–90° (stepless)
• Footrest adjustment: 0°–90° (stepless)
• Rotation: 360° seat rotation (with armrests extended)
• Wheels: Four independent silent swivel wheels with brakes
• Seat pad: Waterproof, breathable, quick-dry soft pad (corrosion- and mildew-resistant)
• Additional features: Integrated headrest; fold-up foot pedal; designed for transfer, bathing, toileting and short rehabilitation rest
