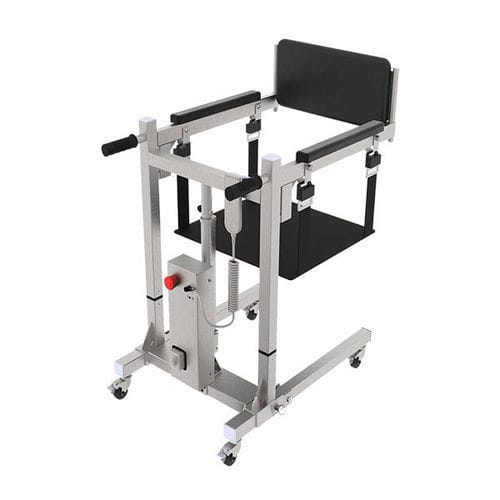

Electric transfer chair A09

indoorheight-adjustablelift

Product Overview
Fully electric patient transfer lift designed for modern intelligent nursing. Constructed from industrial-grade thickened square steel tubing, rated for 120 kg. The high-performance 24 V electric linear actuator enables one-button operation for caregivers to position patients independently. Automotive-grade safety fasteners and configurable sling options provide a secure "zero-distance" transfer solution for frail and disabled users.

Core Selling Points

• One-button electric lift: 24 V push-rod motor for hands-free vertical transfer with smooth, uniform lift/lower motion to reduce patient stress.
• Automotive-grade safety locking: High-strength steel locking clips at connection points for clear tactile feedback and superior tensile strength compared to traditional hooks.
• 120 kg reinforced square-tube frame: Square-section tubing improves geometric stability and torsional rigidity for safer lifting of heavier users.
• Flexible sling options (closed/open): Solid pad for secure long-distance transfers (bed to wheelchair/sofa); open-top sling for toileting use.
• Opening mat (optional): Allows toileting without full dismounting, simplifying incontinence and excretion care.
• Emergency dual protection: Control box with red emergency stop and mechanical emergency descent device for safe evacuation during power loss.

Details
1. Intelligent nursing support: A09 remote controls and sensitive buttons reduce caregiver lumbar strain from repetitive lifts and improve workflow efficiency.
2. Automotive safety components: Buckles with definitive "click" feedback combined with thick, abrasion-resistant straps ensure even load distribution up to the 120 kg limit.
3. Medical-grade finish and hygiene: Waterproof, easy-to-clean electrostatic spray coating suitable for humid bathroom environments; supports assisted bathing and care.
4. Accessibility and compatibility: Base width engineered to pass through doorways ≥ 60 cm and to extend under nursing beds for barrier-free docking.
5. Low-noise operation: Built-in actuator with noise below 35 dB for discreet nighttime adjustments.

Technical Parameter Table
Parameter Items : Specifications Details
Product Model : A09 Series (Fully Electric Suspender Version)
Driving method : 24 V fully electric linear actuator system
Rated load : 120 kg (Enhanced Grade)
Body material : High-strength reinforced square steel pipe
Safety Lock : Automotive-grade stainless steel fasteners
Seat cushion options : Enclosed transport bag / Open-top toilet bag
Caster system : Four-wheel independent brakes, medical silent omnidirectional wheels
Control method : Wired hand controller (high precision adjustment)

Technical specifications

• Model: A09 Series
• Driving method: 24 V fully electric linear actuator
• Rated load: 120 kg
• Body material: High-strength reinforced square steel pipe (square tube)
• Safety lock: Automotive-grade stainless steel locking clips
• Seat/sling options: Enclosed transport bag (solid pad) and open-top toilet bag (opening mat optional)
• Caster system: Four-wheel independent brakes with medical silent omnidirectional wheels
• Control: Wired hand controller; emergency stop and mechanical emergency descent device
• Finish: Medical-grade electrostatic spray coating — waterproof and easy to clean
• Noise level: Below 35 dB
• Accessibility: Base width designed to pass through doorways ≥ 60 cm and extend under nursing beds
