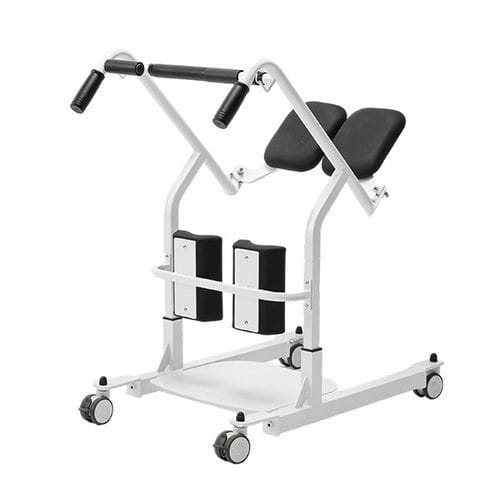

Manual stander A12

electricon casterswalking

Product Overview
Standing transfer device designed for disabled or frail users who retain some upper-limb strength and partial lower-limb support. Unlike sling-based lifts, this device guides the user into a natural standing posture using knee support, an anti-slip foot platform and mechanical or optional electric assistance. It is intended both as a transfer aid and as a tool for standing rehabilitation to help maintain muscle activity and facilitate care tasks.

Core details introduction

• 1. Ergonomic Standing System

  • Multi-point support structure: Triangular stability using knee pads, anti-slip foot pedals and wraparound handrails to provide stable three-point support and reduce swaying during standing.
  • 120 kg rated load: Reinforced steel frame (square and round tube combination) engineered to bear adult body weight with durable, deformation-resistant construction.
• 2. Core Detail Design

  • Knee cushioning pad: Thick, widened knee support to distribute pressure across the tibia and reduce risk of knee injury during transfer and standing.
  • Anti-slip foot platform: Wide, hollowed anti-slip pedal that maintains traction and is easy to clean, suitable for use with slippers or bare feet.
  • Adjustable hooks: Top-mounted adjustable hooks for use with dedicated standing straps or back straps to provide upward support at the waist and assist the user to rise from sitting.
• 3. Control and Mobility

  • Flexible maneuverability: Four medical-grade silent swivel wheels with integrated rear brakes; small turning radius for use in confined spaces such as bedrooms and bathrooms.
  • Opening base: Adjustable base width to straddle wheelchairs or sofas, enabling close positioning for safe transfers.
• 4. Core Advantage: from passive to active

  • Rehabilitation promotion: Encourages user participation in standing to strengthen trunk and lower-limb muscles.
  • Care access: Back-lift design exposes the buttocks for easier diaper changes and toilet assistance by caregivers.

Technical Specifications Table
Performance indicators | Technical parameters
Product Model | A12
Load-bearing capacity | 120 kg
Operating mode | Mechanically assisted / expandable electric lifting
Body material | High-strength carbon steel (stainless steel optional)
Knee pad material | Medical-grade high-elasticity foam + waterproof cover
Braking system | Independent dual brakes on rear wheels
Scope of application | Nursing homes, rehabilitation hospitals, home-based rehabilitation care

Target audience and scenarios

• Suitable for: Patients with lower-limb weakness but some trunk control, postoperative rehabilitation patients, and users requiring standing-function training.
• Application scenarios: Bed-to-wheelchair transfer, wheelchair-to-toilet transfer, daily standing training, assistance with dressing and diaper changes.

Technical features / specifications

• Product Model: A12
• Load-bearing capacity: 120 kg
• Operating mode: Mechanically assisted / expandable electric lifting
• Body material: High-strength carbon steel (stainless steel available)
• Knee pad material: Medical-grade high-elasticity foam + waterproof cover
• Braking system: Independent dual brakes on rear wheels
• Wheels: Four medical-grade silent swivel wheels; rear wheels with integrated brakes
• Scope of application: Nursing homes, rehabilitation hospitals, home-based rehabilitation care
