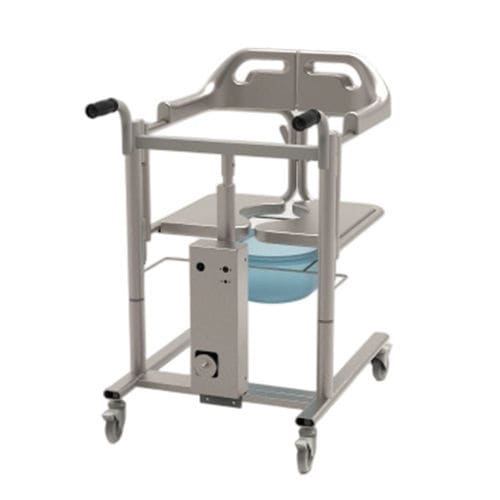

Electric transfer chair A05

indoorcommodeergonomic

Product overview
Fully electric transfer system designed for home-based elderly care, postoperative rehabilitation and nursing facilities. The device combines a 180° rear-opening split seat with a motorized one-touch height adjustment to enable seated automatic transfers between bed, wheelchair, toilet or sofa while reducing manual handling requirements.

Key features

• Fully electric one-button height adjustment via integrated control panel and 24V linear actuator for precise, smooth movement.
• 180° rear-opening split seat: positions behind the user to enclose and transfer without manual lifting.
• High-strength round stainless steel frame with anti-corrosion coating; rated load 100 kg.
• Multifunctional nursing platform: functions as electric transfer device, mobile wheelchair, toilet chair and shower stool.

Details

• Designed for single-caregiver home use: optimized lifting curve for comfort and reduced user anxiety.
• 180° alignment simplifies repositioning and reduces caregiver bending and strain.
• Simple operation: unfold seat, position under user, close and lock to start transfer.
• Rounded stainless steel tubing without sharp edges to reduce risk of bumps or scratches during transfer.
• High-capacity rechargeable battery supports multiple transfers per charge; control panel displays battery status in real time.
• Toilet and shower compatibility: pull-out toilet tray with large central opening and medical-grade silent swivel wheels with independent rear brakes for stability on wet surfaces.

Technical parameters
Product model: A05 Series (Fully electric)
Driving method: 24V fully electric linear actuator system
Rated load: 100 kg
Body material: High-strength round stainless steel tube with anti-corrosion coating
Opening angle: 180° rear split-type opening
Battery: Large-capacity rechargeable lithium or lead-acid battery packs (real-time power display)
Protection level: Splash protection suitable for bathroom use
Control method: Integrated control panel with one-touch height adjustment

Target audience and scenarios

• Home-based elderly care: replaces manual transfers to improve dignity and reduce caregiver effort.
• Postoperative rehabilitation: assists patients unable to bear weight for indoor transfers and toileting.
• Nursing homes and day-care centers: streamlines daily transfers and reduces labor.

Technical specifications

• Model: A05 Series
• Driving method: 24V fully electric linear actuator system
• Rated load: 100 kg
• Body material: High-strength round stainless steel tube with anti-corrosion coating
• Opening angle: 180° rear split-type
• Battery: Large-capacity rechargeable lithium or lead-acid battery packs (real-time power display)
• Protection: Splash protection suitable for bathroom use
• Control: Integrated control panel with one-touch height adjustment
