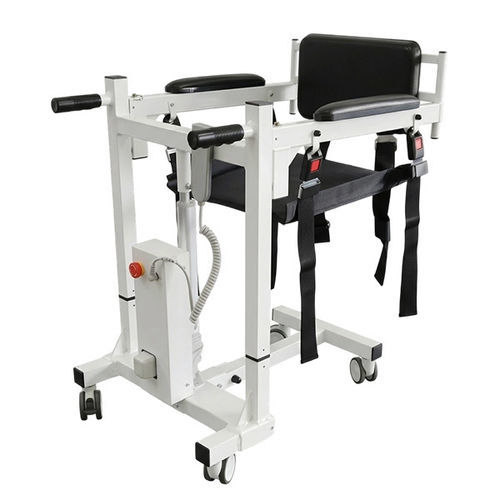

Electric transfer chair A09-1

indoorliftwith armrests

Product overview
The A09-1 is an electric patient transfer lift designed for frequent transfers in home care and clinical rehabilitation settings. It features a reinforced square-tube frame, an I-beam base for low-profile insertion under wheelchairs and beds, and a 24V fully electric linear actuator system. Rated load: 120 kg. The unit integrates automotive-grade safety locks and a hand controller for one-touch smooth lifting, improving transfer accuracy and reducing manual handling.

Core selling points

• I-beam base for reliable docking: allows deeper insertion beneath wheelchair and bed frames to enable near-zero-distance transfers and more vertical lifting.
• One-touch electric lifting: high-precision electric actuator controlled by a hand pendant for vibration-free, quiet height adjustment.
• Automotive-grade safety locking: stainless-steel locks providing instant mechanical engagement and high tensile redundancy to prevent slippage.
• Reinforced square-tube structure: thickened square steel tubes deliver increased torsional resistance and dimensional stability under the full 120 kg load.
• Optional multifunctional seat: choice of fully enclosed comfort pad or open-top toilet pad; open pad compatible with a toilet seat attachment for no-touch toileting.

Details

• I-beam insertion design: chassis geometry minimizes ground clearance while avoiding interference with wheelchair front wheels, enabling vertical, stable lifts with minimal horizontal displacement.
• Hygienic, service-ready frame: white electrostatic antibacterial coating for easy cleaning; structure engineered to resist deformation under high-frequency use.
• Low-noise motor: 24V power system operates below 35 dB to limit disturbance during night-time adjustments.
• Safety and user protection: automotive-grade buckles give clear tactile locking feedback; wide, reinforced straps distribute load to reduce pressure points.
• Emergency measures: hand pendant includes a red emergency stop for power cutoff; dedicated mechanical emergency descent allows safe lowering in case of power failure.

Technical specifications

• Model: A09-1 (fully electric, I-beam base)
• Rated load: 120 kg
• Drive system: 24V fully electric linear actuator
• Base structure: I-beam chassis for deep insertion under wheelchairs/beds
• Frame material: reinforced square steel tubing with white electrostatic antibacterial coating
• Safety locks: automotive-grade stainless-steel fasteners (instant lock)
• Seat options: fully enclosed comfort pad or open-top toilet pad
• Casters: four-wheel independent braking
• Motor noise: <35 dB (24V system)
• Control: hand controller with one-touch lifting
• Emergency: red emergency stop and mechanical emergency descent
• Stability: thickened square tubes for high torsional resistance
