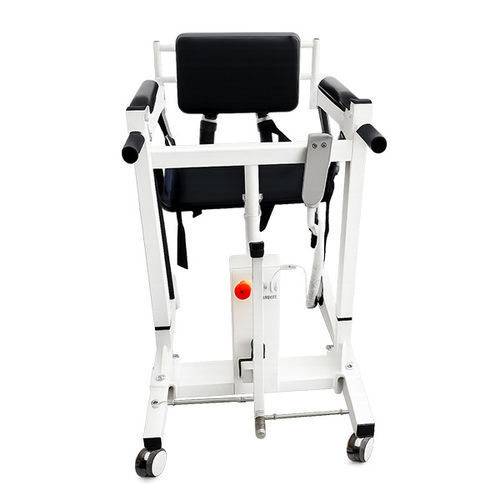

Electric transfer chair A10

indoorheight-adjustablelift

Product overview
Fully electric patient transfer system designed for both professional medical facilities and complex home-care environments. The unit features a high-rigidity square steel tube frame with a rated load of 120 kg. Its principal innovation is a dynamically adjustable opening/closing foot assembly combined with one-button electric lifting and automotive-grade safety fasteners, addressing compatibility issues with extra-wide wheelchairs and narrow doorways.

Key features

• Dynamically opening and closing feet: Foot width is adjusted by a simple rod to allow door passage down to 60 cm when closed and under large wheelchairs, sofas or nursing beds when opened, ensuring a stable lift center and close docking.
• One-button electric lift: 24V linear actuator provides smooth, controlled lifting to eliminate suspension anxiety and enable a single caregiver to operate without manual effort.
• Automotive-grade safety fasteners: Stainless steel connectors with clear locking feedback deliver high tensile strength and prevent sling detachment.
• Square-tube chassis for minimized sway: Reinforced square tubing increases torsional stiffness compared with round tubing, maintaining stability under full 120 kg load even with feet extended.
• Interchangeable sling options: Supports enclosed transfer slings and open-top toileting slings to meet varied relocation and privacy-care needs.

Details

• Adaptable foot geometry: Hinged feet enable quick width adjustments so the sling remains perpendicular to the seat center, improving transfer safety.
• Industrial design with medical-grade durability: Reinforced square tubing and inspected weld points provide load redundancy for frequent institutional use.
• Quiet power unit: Low-noise built-in motor suitable for ward environments.
• Robust anchoring: Automotive-standard buckles and thick fiber straps for secure fixation, suitable for high-dependency patients.
• Emergency and maintenance features: Control panel with a red emergency-stop to lock the system; full-body medical-grade powder coating for corrosion resistance and easy disinfection; open structure allows use in bathroom or bathing assistance.

Technical specifications
Model — A10 (fully electric opening/closing foot model)
Drive — 24V fully electric linear actuator system
Foot function — Dynamically adjustable opening and closing to fit different furniture and wheelchair widths
Rated load — 120 kg
Body material — High-strength reinforced square steel tubing
Safety lock — Automotive-grade stainless steel fasteners
Seat/cushion options — Enclosed transfer sling / Open-top toileting sling
Battery — High energy density battery supporting multiple transfer cycles
Emergency — Red emergency stop on control panel
Finish — Medical-grade powder electrostatic coating (corrosion resistant, easy to disinfect)

• Model: A10
• Rated load: 120 kg
• Drive: 24V linear actuator
• Foot function: Dynamically adjustable opening/closing
• Body material: Reinforced square steel tubing
• Safety lock: Automotive-grade stainless steel fasteners
• Sling options: Enclosed or open-top toileting slings
• Battery: High energy density, multiple cycles
• Emergency: Red emergency stop
• Finish: Medical-grade powder coating
