Manual stander A23

on casterswalking

Product Overview

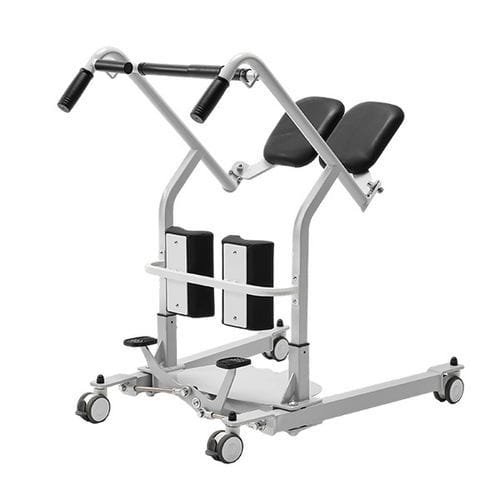

The A23 is a professional standing-assisted patient transfer designed for lower-limb rehabilitation and short-distance transport. Using a mechanical lever principle and ergonomic supports, it enables users with partial weight-bearing ability to move from sitting to standing and to transfer between furniture or care settings. The device features a 120 kg rated load, an all-steel reinforced frame and a foot-operated base for fast, safe docking and maneuvering in clinical and home-care environments.

Core details introduction

• 1. Stable load-bearing and structure
  • 120 kg rated load: Reinforced alloy steel frame with anti-corrosion treatment to safely support typical adult weights.
  • Split chest/back support: Widened double-split soft pads adapt to chest or back contours to distribute pressure and provide comfortable support while standing.
• 2. Flexible foot opening and closing system
  • Foot-operated linkage: Dual foot pedals allow caregivers to open and close the base quickly and without bending, improving workflow during transfers.
  • Direct docking to furniture: When opened, the base can straddle wheelchair footrests, nursing beds or low sofas to enable close-range transfers with minimal lateral displacement.
• 3. Scientific standing support design
  • Ergonomic knee support: Thick double knee pads prevent forward knee thrust and provide a stable support point during stand-up motion.
  • Anti-slip footrest: Wide foot platform with footprint guides secures foot placement and reduces slippage during weight transfer.
  • Multi-functional handle: Long, angled handle offers multiple grip positions for the user and convenient push/steer points for caregivers.
• 4. Safe mobility performance
  • Low center of gravity: Structural layout reduces rollover risk and maintains stability when turning or moving on inclines.
  • Six-wheel stabilization and brakes: Medical-grade silent double-row universal wheels with independent rear brake ensure controlled stopping and stability on wet or slippery surfaces.

Technical Specifications
Product Model — A23
Operation method — Mechanically assisted / manual (lever principle)
Rated load — 120 kg
Foot function — Dual foot-pedal opening/closing linkage
Core materials — Reinforced alloy steel / High-density soft PU pads
Mobility — Omnidirectional silent double-row wheels with independent brakes; six-wheel stabilization system
Applications — Lower-limb rehabilitation, standing training, bed/chair/toilet transfers, short-distance transport, passive standing care

Key specifications

• Model: A23
• Rated load capacity: 120 kg
• Operation: Mechanically assisted / manual (lever principle)
• Base: Foot-operated linkage opening/closing, dual foot pedals
• Frame material: Reinforced alloy steel with anti-corrosion treatment
• Pads: Widened double-split soft chest/back pads; high-density soft PU
• Knee support: Thick double knee support pads for ergonomic protection
• Footrest: Wide anti-slip footrest with footprint guidance marks
• Handle: Long angled multi-functional grip for user and caregiver operation
• Mobility: Omnidirectional silent double-row universal wheels with independent brakes; six-wheel pressure stabilization
• Safety: Low center of gravity for high stability during turning and movement
• Primary applications: Lower-limb rehabilitation, standing training, short-distance transport, bed/chair/toilet transfers, passive standing care
