Electric patient lift

wall-mountedwheelchairlifting

Product Overview

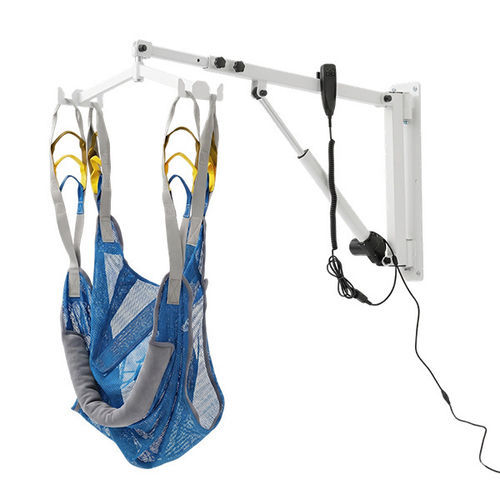

The wall-mounted patient transfer lift WM-150 is a compact electric solution designed for hospitals, nursing homes, rehabilitation centers and home care. With a reinforced wall-mounted rail, electric actuator and a telescopic 180° rotating boom, it enables safe, stable transfers between beds, wheelchairs, toilets and therapy areas while reducing caregiver strain and improving patient comfort.

Key Features

• Space-saving wall-mounted design ideal for rooms with limited floor space.
• Powerful electric actuator delivering smooth, controlled lifting at 4 mm/s.
• 150 kg safe working load with reinforced structural frame.
• Adjustable telescopic boom: 1000–1400 mm for flexible positioning.
• 180° rotating boom for transfers across multiple orientations.
• Quiet operation ≤ 60 dBA for a comfortable care environment.

Detailed Description

• Stable and smooth transfers: Electric actuator ensures controlled vertical movement to enhance patient comfort and safety.
• Versatile for multiple scenarios: Telescopic and rotating boom supports bed-to-wheelchair, toilet assistance, rehabilitation training and routine nursing tasks.
• Compact installation: Installation height requirement ≤ 600 mm to fit varied room layouts while maximizing usable floor area.
• Professional safety features: Reinforced wall-mounted frame, reliable actuator performance and smooth boom rotation for secure patient positioning and long-term clinical use.

Performance Parameters

• Overall Dimensions: 1100 × 507 × 650 mm
• Net Weight: 17.3 kg
• Maximum Lifting Distance: 890 mm
• Lifting Speed: 4 mm/s
• Driving Method: Electric actuator
• Charging Power Supply: AC220V / 50Hz
• Maximum Load Capacity: 150 kg
• Boom Telescopic Length: 1000 mm – 1400 mm
• Boom Rotation Angle: 0° – 180°
• Operating Noise: ≤ 60 dBA
• Installation Height Requirement: ≤ 600 mm

Technical Specifications

• Overall Dimensions: 1100 × 507 × 650 mm
• Net Weight: 17.3 kg
• Maximum Lifting Distance: 890 mm
• Lifting Speed: 4 mm/s
• Driving Method: Electric actuator
• Charging Power Supply: AC220V / 50Hz
• Maximum Load Capacity: 150 kg
• Boom Telescopic Length: 1000 mm – 1400 mm
• Boom Rotation Angle: 0° – 180°
• Operating Noise: ≤ 60 dBA
• Installation Height Requirement: ≤ 600 mm
