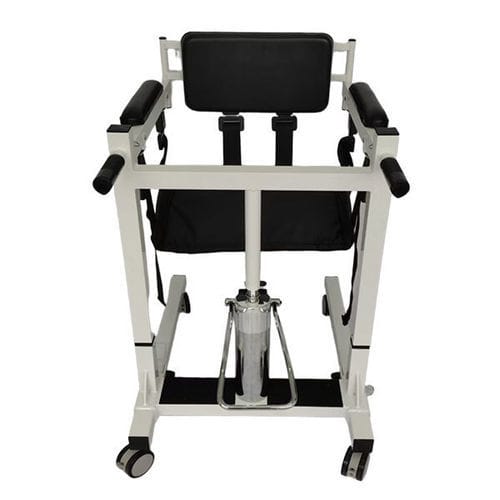

Indoor transfer chair A08

ergonomicliftwith armrests

Product overview
The A08 is a patient transfer hoist designed for clinical and home-care environments. It combines a reinforced square-tube frame with a foot-operated hydraulic lift and a flexible suspended sling seat. The unit has a rated load of 120 kg and is intended for transfers between beds, wheelchairs and sanitary fixtures.

Key features

• Automotive-grade safety buckle system: uses vehicle-standard buckles with one-click engagement and audible lock confirmation to secure occupants during transfer.
• 120 kg reinforced square-tube structure: square tubing provides improved bending and torsional resistance for stable lifting at height.
• Flexible suspended sling seat (optional toilet opening): sling conforms to body contours to reduce pressure points; available in solid and perforated versions for hygiene and toileting.
• Zero-power hydraulic lifting: ergonomic foot pedal operates the hydraulic lift without charging, suitable for domestic and clinical settings.
• 180° rear-entry seating logic: rear-opening sling access allows caregivers to position the sling without manual lifting of the patient.

Details

• Automotive-standard safety features: buckles tested for long service life with high tensile strength; combined with high-strength webbing for secure support during transfers.
• Square-tube design and finish: durable industrial finish with anti-corrosion electrostatic coating suitable for bathroom environments; structure reduces lateral sway and maintains center of gravity during operation.
• Ergonomic sling and seat cushion options: soft suspended sling that distributes pressure to prevent skin friction; optional open-front sling for direct toileting connection.
• Casters and brakes: four independent silent medical casters with rear-wheel locks to secure the unit during care procedures.

Technical parameters
Parameter items : Specifications Details
Product model : A08 Series (Suspender Style)
Lifting method : Foot-operated hydraulic drive (labor-saving type)
Body material : Reinforced square steel pipe (thickened wall thickness)
Rated load : 120 kg
Security configuration : Automotive-grade safety buckles, multi-level adjustable slings
Seat cushion options : Enclosed transfer mat / Open toilet mat
Caster specifications : Four-wheel independent brakes, medical silent omnidirectional wheels
Scope of application : Home care, nursing homes, rehabilitation hospitals, special care schools

Technical specifications

• Product model: A08 Series (Suspender Style)
• Lifting method: Foot-operated hydraulic drive (labor-saving type)
• Body material: Reinforced square steel pipe (thickened wall)
• Rated load: 120 kg
• Security configuration: Automotive-grade safety buckles; multi-level adjustable slings
• Seat cushion options: Enclosed transfer mat; Open toilet mat (optional)
• Caster specifications: Four independent medical silent omnidirectional wheels with brakes (lockable rear wheel)
• Scope of application: Home care, nursing homes, rehabilitation hospitals, special care schools
