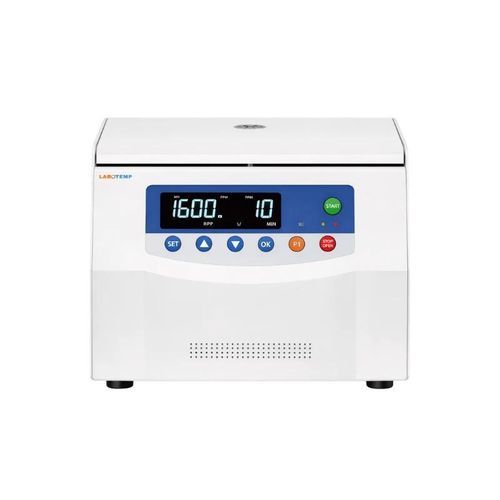

Laboratory centrifuge LLC-103

for biologyfor hematologyclinical

Overview
LLC-103 benchtop high-speed centrifuge is engineered for clinical, diagnostic and research laboratories requiring high-throughput sample processing. It reaches up to 16,500 rpm and a maximum RCF of 23,120 ×g, supporting blood separation, PRP preparation, hematocrit testing and molecular sample processing. Reinforced steel body and a 304 stainless steel chamber enhance chemical resistance and service life.

Performance & Control
Equipped with a frequency-conversion motor for stable speed regulation with soft acceleration and braking. The digital LCD interface displays RPM and RCF in real time, offers programmable run profiles, automatic RPM/RCF conversion and precise timing for repeatable protocols. Safety systems include automatic lid lock, imbalance detection, RFID rotor recognition and emergency lid release.

Why choose LLC-103

• High throughput: 4 × 100 mL capacity for larger-volume clinical samples
• High-speed separation: up to 23,120 ×g with controlled acceleration/deceleration
• Clinical safety features: CE certified, aerosol-tight caps, rotor recognition and active imbalance protection

Features

• Durable powder-coated steel body with reinforced structure
• Compact benchtop footprint for routine lab use
• Maximum speed 16,500 rpm / maximum RCF 23,120 ×g
• Microprocessor control for precise, stable operation
• LCD display for real-time speed, time and RCF monitoring
• Frequency-conversion motor for smooth, low-maintenance operation
• 304 stainless steel chamber resistant to reagents and easy to clean
• Aluminum-alloy rotors with high durability; many rotors autoclavable
• Automatic RPM/RCF conversion and reversible parameter setting during runs
• 30 programmable memory settings and adjustable acceleration/deceleration (0–10 levels)
• Low noise operation ≤58 dB(A) and self-diagnostic error display
• RFID rotor identification and active imbalance shutdown
• Viewing port and emergency lid release
• Aerosol-tight caps for safe handling of infectious or sensitive samples

Applications

• Molecular biology: separation of DNA, RNA and proteins; PCR sample prep
• Clinical and diagnostic laboratories: blood, serum and plasma separation
• Hematology: hematocrit testing and PRP preparation
• Cell culture: cell harvesting and pellet formation
• Pharmaceutical and biochemistry labs: QC and analytical sample preparation
• Food & environmental testing: sample clarification and prep

General Specifications
Maximum Capacity: 4 × 100 mL
Maximum Speed: 16,500 rpm
Maximum RCF: 23,120 ×g
Speed Accuracy: ±10 rpm
Control System: Microprocessor control
Display: LCD display
Timer Range: 0–99 min, adjustable
Acceleration / Deceleration: 0–10 levels
Noise Level: ≤58 dB(A)

Electrical & Construction
Voltage: 220 V, 50 Hz AC
Current: 5 A
Power: 600 W
Motor Type: Frequency-conversion motor
Chamber Material: 304 stainless steel
Body Material: Powder-coated steel
Rotor Material: Aluminum alloy

Physical Dimensions
Dimensions (L × W × H): 470 × 345 × 295 mm
Package Size (L × W × H): 600 × 480 × 510 mm
Weight Without Rotor: 28 kg
Gross Weight: 45 kg

Optional Rotors / Adapters (selection)

• Angle rotor + adapter — 12 × 1.5/2.2 ml; adapter: 12 × 0.5/0.2 ml — Max 16,500 r/min — Max RCF 19,175 ×g — Tube type: PP/PC
• Angle rotor + adapter — 12 × 5 ml; adapter: 12 × 1.5 ml — Max 16,500 r/min — Max RCF 19,480 ×g — Tube type: PP/PC
• Angle rotor + adapter — 12 × 10 ml; adapter: 12 × 5 ml — Max 12,000 r/min — Max RCF 13,156 ×g — Tube type: PP/PC
• Angle rotor + adapter — 24 × 1.5/2.2 ml; adapter: 24 × 0.5/0.2 ml — Max 14,000 r/min — Max RCF 17,530 ×g — Tube type: PP/PC
• Angle rotor + adapter — 36 × 1.5/2.2 ml; adapter: 36 × 0.5/0.2 ml — Max 13,000 r/min — Max RCF 15,400 ×g — Tube type: PP/PC
• Angle rotor — 12 × 8 × 0.2 ml (PCR strips) — Max 15,000 r/min — Max RCF 23,120 ×g — Tube type: PCR 8-tube strips
• Angle rotor + adapter — 10 × 15 ml; adapter: 10 × 10 ml / 5 ml — Max 11,000 r/min — Max RCF 14,745 ×g — Tube type: PP/PC
• Angle rotor + adapter — 6 × 50 ml; adapter: 6 × 15 ml / 10 ml / 1.5 ml — Max 11,000 r/min — Max RCF 12,175 ×g — Tube type: PP/PC
• Angle rotor + adapter — 4 × 10/100 ml; adapter: 4 × 50 ml / 15/10 ml / 5/1.5 ml — Max 10,000 r/min — Max RCF 10,975 ×g — Tube type: PP/PC

Technical specifications

• Model: LLC-103
• Maximum Speed: 16,500 rpm
• Maximum RCF: 23,120 ×g
• Maximum Capacity: 4 × 100 mL
• Speed Accuracy: ±10 rpm
• Control: Microprocessor with LCD display
• Timer: 0–99 min adjustable
• Acceleration/Deceleration: 0–10 levels
• Noise Level: ≤58 dB(A)
• Voltage / Frequency: 220 V, 50 Hz AC
• Power: 600 W
• Current: 5 A
• Motor: Frequency-conversion motor
• Chamber Material: 304 stainless steel
• Body Material: Powder-coated steel
• Rotor Material: Aluminum alloy
• Dimensions (L×W×H): 470 × 345 × 295 mm
• Weight (without rotor): 28 kg
• Gross Weight: 45 kg
• Safety: Automatic lid lock, imbalance detection, RFID rotor recognition, self-diagnostic system, emergency lid release
• Programmability: 30 programmable memory settings
