Laboratory centrifuge LLC-109

clinicalfor teachingfor research

Product overview

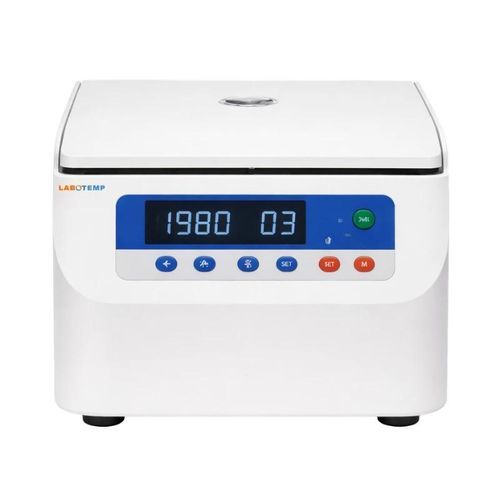

Labotemp Low-speed benchtop centrifuge LLC-109 is a compact laboratory centrifuge for routine clinical and research sample processing. It operates up to 4000 rpm with a maximum RCF of 2680 × g and accepts an angle rotor configuration including a 6 × 50 ml rotor for handling larger-volume tubes. The unit is suited to blood separation, serum/plasma preparation, PRP processing and general sample clarification in clinical, diagnostic and small research labs.

Key benefits

• Efficient processing of multiple samples using the 6 × 50 ml angle rotor and interchangeable adapters.
• Stable, low-noise operation: 4000 rpm maximum with noise level ≤55 dB(A) to support routine lab workflows.
• Integrated safety features: lid lock, imbalance protection and automatic stop for secure operation.

Features

• Energy-efficient design
• Compact benchtop footprint for limited lab space
• Microprocessor control for stable speed and timing
• Clear digital display for speed and time settings
• Low-speed operation ideal for gentle separation of biological samples
• Frequency-controlled motor for smooth acceleration and reliable performance
• Durable powder-coated steel exterior
• Corrosion-resistant chamber for routine laboratory use
• Aluminum alloy angle rotor for balanced rotation
• Compatibility with multiple tube sizes via adapters
• Automatic RPM/RCF conversion
• Adjustable timer up to 99 minutes
• Low noise ≤55 dB(A)
• Quick and easy rotor installation and removal
• Minimal vibration and stable operation
• Safety lid lock during run
• Imbalance detection and protection
• Smooth start/stop to protect samples

Applications

• Routine separation of whole blood, serum and plasma in clinical laboratories
• Sample preparation for biochemical and diagnostic assays
• Cell sedimentation and gentle separation of cellular components
• Use in hospitals, pathology labs and small research facilities
• Processing of urine and other clinical fluids
• Educational and academic laboratory centrifugation tasks
• Food and environmental sample clarification requiring low-speed centrifugation

Optional rotors / adapters

• No. 1 — Angle rotor: 24 × 10/5 ml; Max capacity: 24 tubes; Max speed: 4000 rpm; Max RCF: 2680 × g; Tube types: PP/PC tubes, vacuum blood collection tubes
• Adapter: 24 × 2 ml; Tube types: PP/PC tubes
• Adapter: 24 × 1.5 ml; Tube types: PP/PC tubes
• No. 2 — Angle rotor: 6 × 50 ml; Max capacity: 6 tubes; Max speed: 4000 rpm; Max RCF: 2680 × g; Tube types: PP/PC tubes
• Adapter: 6 × 15/10 ml; Tube types: PP/PC tubes
• Adapter: 6 × 5 ml; Tube types: PP/PC tubes

Technical specifications

• Maximum capacity: Angle rotor 6 × 50 ml
• Maximum speed: 4000 rpm
• Maximum RCF: 2680 × g
• Noise level: ≤55 dB(A)
• Voltage: AC 220 V
• Frequency: 50 Hz
• Current: 5 A
• Power: 120 W
• Control system: Microprocessor control
• Display: Digital display
• Timer range: 0–99 minutes adjustable
• Speed accuracy: ±10 rpm
• Dimensions (L × W × H): 430 × 320 × 250 mm
• Weight (without rotor): 18 kg
