Hematology centrifuge LLC-204

clinicalfor blood bankscell-washing

Overview

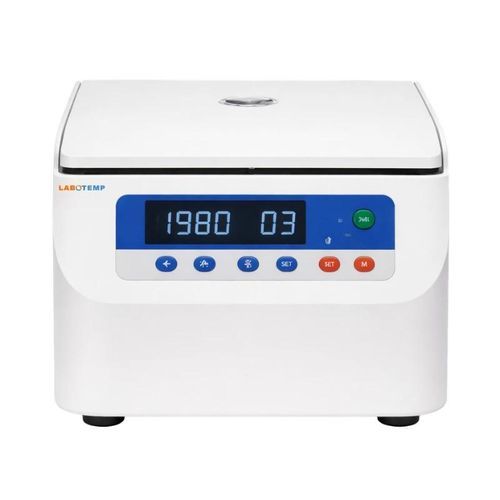

Labotemp Cell Washing Centrifuge LLC-204 is a compact yet efficient laboratory centrifuge designed for blood group testing and immunohematology procedures in hospitals, blood banks, and diagnostic laboratories. It operates at speeds up to 5000 rpm with a maximum RCF of 3600 × g, enabling reliable washing and preparation of red blood cells for serological analysis. The system supports 12 × 15/10/5 ml tubes and is suitable for routine procedures such as ABO blood typing, Rh antigen testing, antibody screening, and cross-matching in clinical laboratories and transfusion facilities.

Design & Control
Engineered for precision and ease of use, this model integrates a microprocessor-controlled system with multiple programmed centrifugation cycles, rapid acceleration, controlled braking, an intelligent self-diagnostic system, and safety features to enhance operational safety and laboratory efficiency.

Why Choose Labotemp Cell Washing Centrifuge LLC-204?

• Optimized for Immunohematology Testing: Supports blood typing, antibody screening, and cross-matching procedures in transfusion laboratories.
• Trusted Centrifuge Manufacturer: Labotemp develops durable centrifuge systems designed for reliable laboratory operation and precise sample processing.
• Efficient & Safe Operation: Programmable cycles, quick stop function, and self-diagnostic safety system for stable routine testing in blood bank laboratories.

Features

• 6 Wash Cycles
• Intelligent microprocessor control with real-time parameter display
• Frequency conversion AC motor for stable, maintenance-free operation
• Powder-coated steel body with high corrosion resistance
• 304 stainless steel chamber compatible with disinfectants
• Aluminum alloy fixed angle rotor for precision separation
• Autoclavable rotors and buckets for contamination control
• Reinforced chamber and lid construction for durability
• Smooth loading/unloading with precision-machined rotor slots
• LED/LCD/TFT display for clear visibility
• Real-time parameter adjustment during operation
• Interchangeable rotor system for flexible applications
• Automatic RPM/RCF conversion
• Up to 30 program memory storage
• Last run parameter recall for repeat workflows
• 10 acceleration and 10 deceleration ramps
• Automatic lid locking during operation
• Viewing port for monitoring and calibration
• Active imbalance detection with automatic shutdown
• Lid interlock system preventing operation when open
• Controlled lid opening with drop protection
• Emergency lid release in case of power failure
• Smooth start-up to protect sensitive samples

Applications

• Blood grouping, ABO typing, and Rh antigen testing
• Cross-matching for transfusion compatibility
• Antibody screening in immunohematology diagnostics
• Platelet antibody screening and crossmatching
• HDN (Hemolytic Disease of Newborn) detection
• Clinical sample separation with controlled RPM/RCF accuracy
• Routine centrifugation in diagnostic and hospital laboratories
• Sample preparation for serology and hematology analysis

Optional Modules (Rotor / Adapter Table)
No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type
1 | Angle Rotor | 12 × 15/10/5 ml | 5000 r/min | 3600 × g | Standard cross-matching blood test
| Adapter | 12 × 2 ml | — | — | PP/PC tube

Technical specifications

• Maximum Speed: 5000 rpm
• Maximum RCF: 3600 × g
• Maximum Capacity: 12 × 15/10/5 ml
• Voltage: AC 220V 50Hz
• Current: 5 A
• Noise Level: ≤55 dB (A)
• Motor: Inverter motor direct drive
• Speed Accuracy: ±10 r/min
• Acceleration/Deceleration: 1–10 rates
• Dimension (L×W×H): 430 × 320 × 220 mm
• Weight: 22 kg
