Teaching centrifuge LLC-602

laboratoryfor researchfor the food industry

Overview

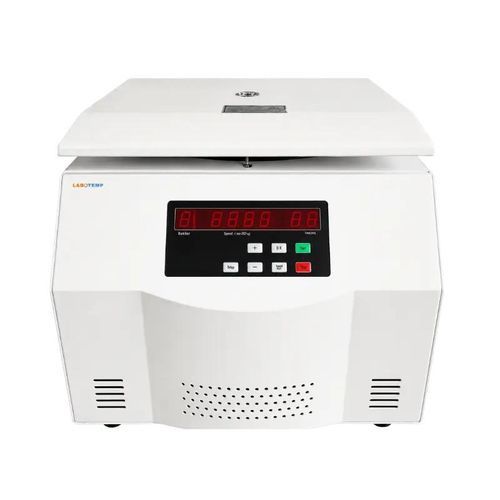

Labotemp LLC-602 milk testing centrifuge is a table-type swing-rotor centrifuge designed for milk fat analysis using Babcock flasks. It delivers up to 3000 rpm (maximum RCF 2012 × g), accepts 4 × 50 mL Babcock flasks and features constant-speed operation, digital touch-key control and a programmable timer (0–99 min) for repeatable separation in dairy testing workflows.

Key Advantages

• Babcock testing ready: compatible with 4 × 50 mL Babcock flasks and optimized for milk fat determination.
• Stable separation performance: constant-speed operation ensures consistent results.
• Advanced safety protection: electronic and mechanical door locks, automatic stop on lid opening and imbalance detection.

Features

• Table-type swing rotor compatible with 4 × 50 mL Babcock flasks.
• Cold-rolled steel housing and stainless-steel chamber for easy cleaning.
• High-brightness digital display with touch-key controls and parameter memory.
• Imported bearing motor for low noise and extended service life.
• Timer up to 99 minutes; timing, constant-speed and stop-alarm functions.
• Automatic stop on lid opening, dual door-lock protection and imbalance alarm.
• Optimized airflow design for uniform temperature, low vibration and quiet operation.
• Compact benchtop footprint suited to routine dairy laboratory workflows.

Applications

• Dairy quality control and milk collection centers for Babcock fat analysis.
• Dairy processing plants and food testing laboratories for routine physical and chemical tests.
• Agricultural research institutes and educational laboratories for accurate fat-content determination and standardization.

Specifications (source table)
Maximum Centrifugal Radius: 200 mm
Maximum Speed: 3000 rpm
Power Supply: AC 220V, 110V, 50/60Hz 10A
Rotor Type: Swing Rotor
Number of Buckets: 4 × 50 mL Babcock flasks
Maximum RCF: 2012 × g
Timer Range: 0–99 min
Product Type: Table-type centrifuge for Babcock flasks
Dimensions (W × D × H): 490 × 400 × 370 mm
Chamber Material: Stainless steel
Display: High-brightness digital display
Control: Touch-key setting and adjustment
Speed Control: Timing, constant speed, and stop alarm
Air Duct Design: Uniform temperature distribution
Motor: Imported bearing motor for reduced noise and longer service life
Memory Function: Parameter memory and data recovery after power failure
Door Lock: Electronic + mechanical door lock
Safety Protection: Automatic stop on door opening and imbalance protection
Package Size: 740 × 590 × 570 mm
Gross Weight: 66 kg

Technical specifications

• Model: LLC-602
• Maximum speed: 3000 rpm
• Maximum RCF: 2012 × g
• Rotor type: Swing rotor
• Capacity: 4 × 50 mL Babcock flasks
• Timer: 0–99 minutes (programmable)
• Power supply: AC 220V, 110V, 50/60Hz, 10A
• Dimensions (W×D×H): 490 × 400 × 370 mm
• Chamber material: Stainless steel
• Housing: Cold-rolled steel
• Display/Control: High-brightness digital display with touch-key control
• Safety: Electronic + mechanical door lock, automatic stop on lid open, imbalance protection
• Weight (gross): 66 kg
