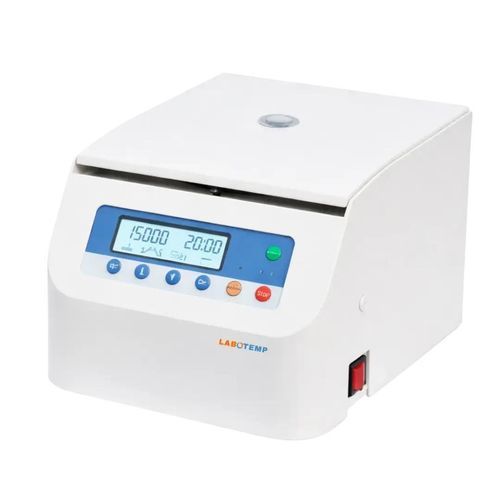

Laboratory microcentrifuge LLC-301

for biologyclinicalfor life sciences applications

Overview
Labotemp Microcentrifuge LLC-301 is a compact high-speed benchtop centrifuge designed for efficient separation of biological samples in research, diagnostic and quality control laboratories. Speed adjustable 0–16500 rpm with a maximum RCF of 19,480 × g. Standard rotor supports 12 × 5 ml and accommodates PCR strips, filter tubes and microtubes from 1.5 ml to 5 ml. Microprocessor control with frequency-conversion AC motor and LED display for speed, RCF and timer parameters.

Key Advantages

• High-speed performance up to 16500 rpm and 19,480 × g for rapid separation
• Microprocessor control with programmable timer and clear LED readout
• Automatic lid locking and electrical lid interlock for safe operation
• Low noise operation (≤ 55 dB(A)) suitable for laboratory environments

Features

• 16500 RPM precision performance
• Microprocessor-controlled high-speed benchtop design with frequency-conversion AC motor for stable operation
• Large LED display showing speed, timer, RCF, rotor parameters, program memory, acceleration/deceleration and error codes
• 10 selectable acceleration and 10 selectable braking rates to reduce secondary sedimentation
• Rapid acceleration/braking reaching maximum speed in approximately 15 seconds
• Automatic lid locking system secures the rotor during operation
• Low noise below 55 dB(A) at maximum speed
• Interchangeable rotors for flexible use with different tube formats
• Built-in error alarms and troubleshooting display
• Electrical lid safety interlock prevents operation when lid is open

Applications

• Sample pelleting: separation of cells, bacteria and biological particles
• DNA/RNA workflows: nucleic acid extraction and purification
• Protein and enzyme studies: precipitation, analysis and sample prep
• Clinical diagnostics: blood sample preparation, plasma/serum separation and routine tests
• Laboratory processing: sedimentation, purification and small-volume sample prep in R&D and QC labs

Optional Rotors / Adapters

• 1 | Angle rotor with adapter | 12 × 1.5 / 2.2 ml; Adapter: 12 × 0.5 ml | 16500 r/min | 19176 × g | EP / PP Tubes
• 2 | Angle rotor with adapter | 12 × 5 ml; Adapter: 12 × 1.5 ml | 16500 r/min | 19480 × g | EP / PP Tubes
• 3 | Angle rotor | 8 × 8 × 0.2 ml | 13500 r/min | 16480 × g | PCR 8-Strip Tubes
• 4 | Angle rotor with adapters | 24 × 1.5 / 2.2 ml; Adapter: 24 × 0.5 ml / 24 × 0.2 ml | 14000 r/min | 18407 × g | EP / PP Tubes
• 5 | Angle rotor | 12 × 8 × 0.2 ml | 12000 r/min | 16985 × g | PCR Strip Tubes

Technical specifications

• Speed range: 0 – 16500 rpm (adjustable)
• Max capacity: 12 × 5 ml (standard rotor)
• RCF range: 0 – 19,480 × g (adjustable)
• Timer range: 1 – 99 min 59 s (programmable)
• Speed accuracy: ±10 r/min
• Noise level: ≤ 55 dB(A)
• Acceleration / deceleration: 1 – 10 selectable rates
• Max acceleration time: ~15 seconds
• Max braking time: ~15 seconds
• Dimensions (W×D×H): 340 × 260 × 220 mm
• Packaging dimensions: 450 × 350 × 320 mm
• Power supply: AC 220V, 50 Hz, 10 A, 370 W
• Net weight: 15 kg (without rotor)
• Gross weight: 23 kg (with packaging)
