Laboratory centrifuge LLC-601

for teachingfor researchfor the food industry

Product overview

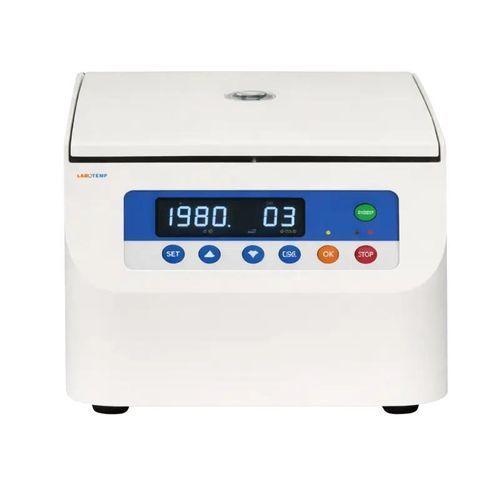

Labotemp Milk Centrifuge LLC-601 is a precision Gerber centrifuge for accurate determination of fat content in dairy samples. It supports Gerber and Babcock methods and is designed for dairy quality control and research. Capacity: 8 × 30 ml Gerber tubes; maximum speed 2000 rpm; maximum RCF 890 × g.

Design & Operation
The LLC-601 features microprocessor control and a clear LCD for precise parameter monitoring. Integrated heating provides temperature control range +5°C to 80°C to improve phase separation and reduce processing time. The unit offers smooth, adjustable acceleration/deceleration (0–9 rates), low-noise operation (≤ 60 dB(A)), inverter motor and lid interlock for safe continuous use.

Key benefits

• Gerber-optimized fat analysis for reliable milk testing.
• Integrated heating: maintains set sample temperature for consistent separation.
• User-friendly controls: microprocessor and LCD enable quick setup and monitoring.

Features

• Capacity for 8 × 30 ml Gerber tubes.
• Speed range 0–2000 rpm; speed accuracy ±10 rpm; max RCF 890 × g.
• Temperature control +5°C to 80°C and timer 0–99 minutes 59 seconds.
• Adjustable acceleration/deceleration (0–9 levels) and rotor positioning for uniform distribution.
• Compact bench-top design and robust internal components for frequent, continuous operation.
• Designed for easy integration into dairy QC workflows.

Applications

• Precise fat content determination in dairy quality control laboratories using Gerber and related methods.
• Routine separation of low-density liquid samples in food testing, educational labs and process validation requiring temperature control and repeatability.

Optional modules / Rotor
No. 1 | Item: Angle rotor | Capacity: 8 × 30 ml | Max. speed: 2000 r/min | Max. RCF: 890 × g

Specifications

• Maximum capacity: 8 × 30 ml
• Maximum speed: 2000 rpm
• Speed accuracy: ±10 rpm
• Maximum RCF: 890 × g
• Temperature range: +5°C to 80°C
• Time range: 0 – 99 minutes 59 seconds
• Acceleration / Deceleration: 0 – 9 rates
• Display: LCD
• Noise level: ≤ 60 dB(A)
• Power supply: AC 220V, 50Hz, 15A, 2000W
• Motor: Frequency converter motor
• Dimensions (L × W × H): 600 × 476 × 370 mm
• Net weight (without rotor): 50 kg
