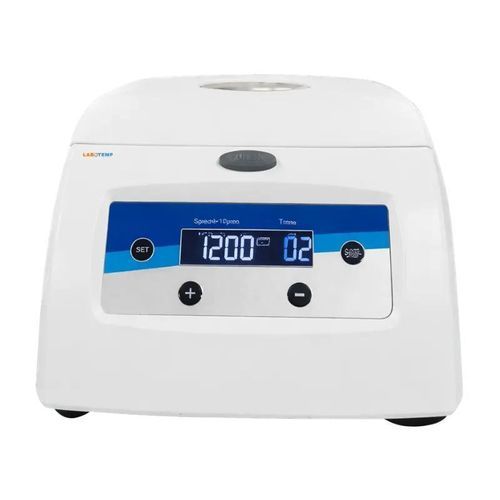

Laboratory microcentrifuge LLC-302

for biologyclinicalfor general purposes

Product Overview
Labotemp Microcentrifuge LLC-302 is a compact microcentrifuge engineered for routine clinical and molecular biology workflows. It delivers up to 12000 rpm (max. RCF 9660×g) and accepts microtubes, PCR strips and a range of adapters. The unit features quiet operation (≤49 dB(A)), low vibration, tool-free rotor changes and an energy-efficient 30 W power draw—suitable for small clinical labs, research benches and field stations.

Key Benefits

• Space-efficient design for crowded lab benches and point-of-care settings.
• High-speed performance (up to 12000 rpm) for efficient nucleic acid and protein processing.
• Low noise and vibration to protect sensitive samples and improve user comfort (≤49 dB(A)).
• Rapid acceleration/deceleration to shorten cycle times and increase throughput.
• Tool-free rotor exchange for fast changeovers between protocols.
• Wide tube compatibility: supports microtubes, PCR strips and multiple adapter formats.

Features

• Precise speed control (±20 rpm) and adjustable speed range (500–12000 rpm).
• Timer adjustable from 1 to 99 minutes.
• Robust design minimizing vibration and ensuring stable high-speed operation.
• Quiet motor system (≤49 dB(A)).
• Energy-efficient consumption (30 W) and universal AC input (230 V, 50/60 Hz).

Applications

• DNA/RNA isolation and extraction workflows.
• PCR setup and rapid spin-downs of microplates and strips.
• Small-volume protein separation and sample clarification.
• Routine clinical diagnostics, research labs, teaching and quality control testing.

Optional Rotors / Adapters (summary)
1. Composite Rotor — Max. Capacity: 12 × 1.5–2.2 ml + 8 × 4 rows × 0.2 ml | Max. Speed: 12000 rpm | Max. RCF: 9500 × g
Adapter — 12 × 0.5 ml | 12000 rpm | 9500 × g
Adapter — 12 × 0.2 ml | 12000 rpm | 9500 × g
2. 12 Combined Rotor — Max. Capacity: 12 × 4 rows × 0.2 ml | 12000 rpm | 5960 × g
3. Angle Rotor — Max. Capacity: 4 × 5 ml | 12000 rpm | 9660 × g
Adapter — 4 × 4 ml | 12000 rpm | 9660 × g
4. Angle Rotor — Max. Capacity: 12 capillaries | 12000 rpm | 8371 × g

Packaging & Dimensions
Dimensions (L × W × H): 194 × 229 × 120 mm | Net weight (without rotor): 3 kg

Electrical & Power
Power supply: AC 230 V, 50/60 Hz | Power consumption: 30 W

Safety & Performance Notes
Designed to meet international laboratory safety and performance standards. Built to reduce vibration and ensure stable operation during high-speed runs; follow manufacturer guidelines for rotor selection and sample balancing.

Technical Specifications

• Maximum capacity: 12 × 1.5–2.2 ml + 8 × 4 rows × 0.2 ml
• Maximum speed: 12000 rpm
• Speed range: 500 – 12000 rpm (adjustable)
• Maximum RCF: 9660 × g
• RCF range: 0 – 9660 × g (adjustable)
• Speed accuracy: ±20 rpm
• Time range: 1 – 99 minutes (adjustable)
• Noise level: ≤49 dB(A)
• Power consumption: 30 W
• Power supply: AC 230 V, 50/60 Hz
• Dimensions (L × W × H): 194 × 229 × 120 mm
• Net weight (without rotor): 3 kg
