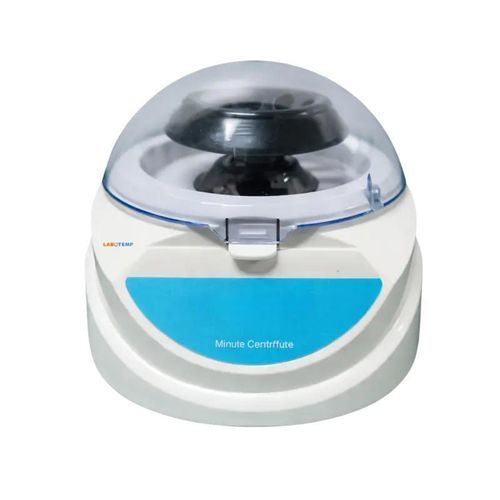

Laboratory microcentrifuge LLC-304

clinicalfor teachingfor research

Product Overview
Labotemp Microcentrifuge LLC-304 is a compact bench-top microcentrifuge designed for routine laboratory separations at low to medium speeds. It accepts blood samples, PCR strips and small-volume tubes and is suitable for clinical diagnostics, teaching labs and basic research. Maximum speed: 7000 rpm; maximum RCF: 3260 × g; capacity: 8 × 2 ml.

Features

• Compact bench-top design for space-constrained laboratories
• Delivers rotational performance to process higher-density samples within short run times
• Durable rotor assembly for repeated, balanced cycles
• Clear dome cover for visual monitoring during runs
• Stable base and optimized structure to reduce operational disturbance
• Compatibility with multiple tube formats for flexible workflows
• User-friendly controls for quick parameter setting and operation
• Tool-free rotor interchangeability for fast configuration
• Quiet operation (≤49 dB) with controlled vibration and fast acceleration/braking

Applications

• Medium-speed separation of blood, serum and plasma in clinical and diagnostic workflows
• PCR strip processing, reagent settling and sample preparation in research and teaching labs
• Routine centrifugation tasks requiring up to 3260 × g for phase separation and sample clarification

Optional Modules / Rotors
No. | Rotor Type | Capacity | Max. Speed | Max. RCF
1 | Angle Rotor | 8 × 0.2 / 0.5 / 1.5 / 2 ml | 7000 r/min | 3260 × g
2 | PCR Tube Rotor | 2 × 8 × 0.2 ml | 7000 r/min | 3260 × g

Specifications

• Maximum Capacity: 8 × 2 ml
• Maximum Speed: 7000 rpm
• Speed Range: 0 – 7000 rpm (adjustable)
• Maximum RCF: 3260 × g
• RCF Range: 0 – 3260 × g (adjustable)
• Speed Accuracy: ±10 rpm
• Time Range: 1 – 99 minutes (adjustable)
• Noise Level: ≤49 dB(A)
• Power Supply: AC 85–265V, 50/60 Hz, 30 W
• Dimensions (L × W × H): 180 × 155 × 120 mm
• Net Weight (without rotor): 1.5 kg
