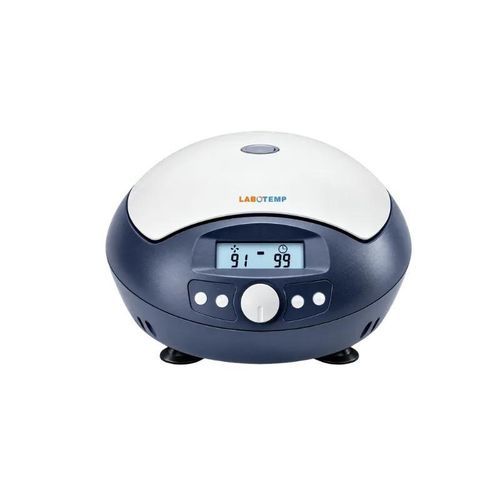

Clinical microcentrifuge LLC-306

for molecular biologyfor researchfor sample preparation

Overview
Labotemp High Speed Micro Centrifuge LLC-306 delivers rapid and controlled centrifugation for small-volume laboratory samples. It reaches a maximum speed of 15,000 rpm and a maximum relative centrifugal force of 15,100 × g. The LLC-306 accepts 0.2 mL, 0.5 mL, 1.5 mL and 2 mL tubes in up to 12 positions, suitable for nucleic acid workflows, plasmid extraction, DNA/RNA sample prep, sedimentation of biological components and biochemical or chemical analysis of microsamples.

Design & Operation
Equipped with a brushless DC motor for fast acceleration and smooth operation. Speed range 500–15,000 rpm with 100 rpm increments and speed accuracy ±20 rpm. Compact footprint (255 × 245 × 140 mm) and noise level ≤54 dB enable benchtop use. Timer: 30 sec–99 min or continuous. User interface includes LCD display, speed/RCF switching, short-time run and sound-alert functions. Integrated safety features: door interlock, over-speed detection, over-temperature detection and automatic internal diagnosis.

Features

• Maximum speed: 15,000 rpm
• Maximum RCF: 15,100 × g
• Speed range 500–15,000 rpm; 100 rpm increments; ±20 rpm accuracy
• Rotor capacity: 12 positions for 0.2 / 0.5 / 1.5 / 2 mL tubes
• Brushless DC motor — rapid acceleration and smooth operation
• Acceleration / braking time: 11 sec / 9 sec
• Run time: 30 sec–99 min or continuous; short-time run function
• LCD display with speed/RCF switch
• Sound-alert function
• Safety: door interlock, over-speed and over-temperature detection, automatic internal diagnosis
• Noise level ≤54 dB; compact dimensions 255 × 245 × 140 mm

Specifications (table)
Product Type: High Speed Micro Centrifuge
Maximum Speed: 15,000 rpm
Speed Range: 500–15,000 rpm
Speed Increment: 100 rpm
Maximum RCF: 15,100 × g
RCF Increment: 100 × g
Speed Accuracy: ±20 rpm
Rotor Capacity: 0.2 mL / 0.5 mL / 1.5 mL / 2 mL × 12
Run Time: 30 sec–99 min / Continuous
Acceleration / Braking Time: 11 sec / 9 sec
Driving Motor: Brushless DC Motor
Display: LCD
Other Functions: Speed/RCF Switch, Short-Time Run Function, Sound-Alert Function
Safety Devices: Door Interlock, Over-Speed Detection, Over-Temperature Detection, Automatic Internal Diagnosis
Power Supply: Single-Phase, AC 100–240 V, 50/60 Hz, 3 A
Power: 100 W
Noise Level: ≤54 dB
Dimensions (D × W × H): 255 × 245 × 140 mm
Packaging Dimension: 350 × 350 × 270 mm
Weight: 6 kg
Gross Weight: 6.5 Kg

Applications

• Molecular biology
  Routine microcentrifugation for DNA/RNA purification and sample prep
• Plasmid extraction
  Centrifugation steps in plasmid isolation workflows
• Clinical and research labs
  Small-volume sample processing and sedimentation of biological components
• Biochemical and chemical analysis
  Preparation of microsamples for downstream assays

Technical specifications

• Model: LLC-306
• Max speed: 15,000 rpm
• Max RCF: 15,100 × g
• Rotor capacity: 12 positions for 0.2 / 0.5 / 1.5 / 2 mL tubes
• Motor: Brushless DC
• Power: 100 W; AC 100–240 V, 50/60 Hz, 3 A
• Noise level: ≤54 dB
• Dimensions: 255 × 245 × 140 mm
• Weight: 6 kg
• Run time: 30 sec–99 min or continuous
• Safety: door interlock; over-speed and over-temperature protection; automatic internal diagnosis
