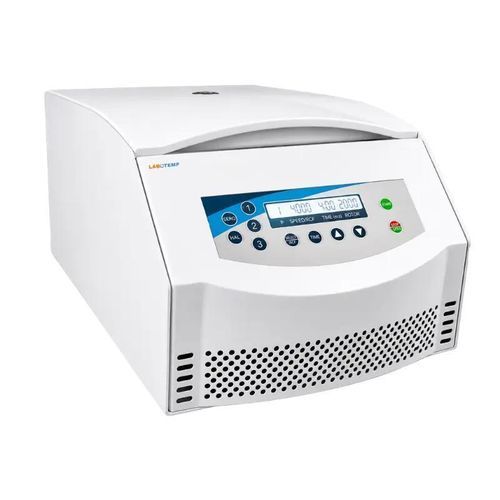

Hematology centrifuge LLC-205

clinicalfor blood banksfor research

Overview
Labotemp Cell Washing Centrifuge LLC-205 is a laboratory centrifuge engineered for rapid, reproducible washing of red blood cells and other cell types used in immunohematology and transfusion workflows. It operates up to 4000 rpm with a maximum RCF of 2000 × g and accepts 12 × 7 ml tubes (12 × 75 mm or 10 × 75 mm). The unit includes dedicated programs for RBC and lymphocyte washing and an LCD microprocessor controller for precise speed, time and RCF control.

Design & Safety
Designed for continuous clinical use, the LLC-205 features an all-steel chamber with multi-layer explosion-proof construction, automatic lid locking, overspeed and imbalance protection, and self-diagnostic monitoring. A maintenance-free high-torque brushless DC motor ensures stable, low-noise operation (≤55 dB(A)), suitable for hospital blood banks and clinical laboratories.

Why choose LLC-205?

• Dedicated washing programs optimized for red blood cells and lymphocytes.
• Integrated safety: automatic lid lock, imbalance detection, overspeed protection and self-diagnostics.
• Compact benchtop design with maintenance-free brushless DC motor and LCD microprocessor controller for repeatable preparation.

Features

• Dedicated RBC wash program
• Dedicated cell washing programs for red and white blood cells
• Maintenance-free brushless high-torque DC motor
• Microprocessor LCD controller displaying speed, time, programming and RCF
• Compact bench-top design
• Automatic lid lock
• Overspeed & imbalance protection
• Self-diagnostic function
• Durable all-steel construction
• Low noise operation (≤55 dB(A))
• Precise speed & timer control

Applications

• Immunohematology and transfusion laboratories: red blood cell washing for blood grouping, antibody screening, cross-matching, Coombs testing and serological analysis.
• Hospital blood banks, clinical laboratories, diagnostic centers and research institutes requiring accurate, repeatable cell washing workflows.

Optional modules / Rotors (summary)

• HAL Rotor for Lymphocyte Washing — 2000 × g — Lymphocyte separation and incubated cell separation
• HAL Rotor — 1000 × g — Hematoblast extenterate (thrombin disposal)
• HAL Rotor — 1000 × g — Lymphocyte washing
• SERO Rotor for Erythrocyte Washing — 500 × g — Blood type determination and hematocyte imaging
• SERO Rotor — 1000 × g — Hematocyte washing and serum distillation
• SERO Rotor — 1000 × g — Hematocyte washing and serum/plasma distillation

Technical specifications

• Maximum Speed: 4000 rpm
• Maximum RCF: 2000 × g
• Maximum Capacity: 12 × 7 ml (12 × 75 mm or 10 × 75 mm)
• Speed Accuracy: ±10 rpm
• Timer Range: 1 s – 99 min 59 s
• Noise Level: ≤55 dB(A)
• Power Supply: AC 110/220 V, 50/60 Hz
• Motor Type: High-torque brushless (non-carbon brush) DC motor (maintenance-free)
• Control System: Microprocessor control
• Display: LCD showing speed, time, programming and RCF
• Programs: Dedicated programs for red and white blood cell washing
• Safety Features: Automatic lid lock, overspeed protection, imbalance detection, self-diagnostic alarm
• Construction: All-steel chamber with multi-layer explosion-proof design
• Fill/Decant Speed: 700 rpm
• Decant RCF: 40 × g
• Dynamic braking: Yes
• External Dimensions (W × D × H): 470 × 320 × 250 mm
• Shipping Dimensions (W × D × H): 565 × 410 × 340 mm
• Net Weight: 16 kg
• Gross Weight: 18 kg
