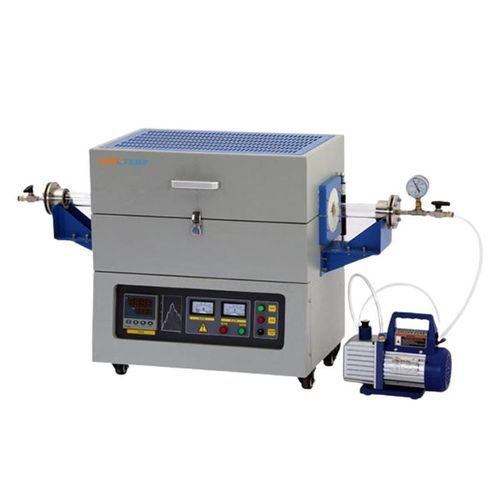

Annealing tube furnace FMT-01sinteringfor scientific researchfor temperature testing
Add to favorites
Compare this product
Characteristics
- Function
- annealing, sintering
- Applications
- laboratory, for general purposes, for scientific research, for temperature testing
- Designed for
- for ceramics, for metal
- Sterilization chamber material
- ceramic fiber
- Configuration
- compact
- Other characteristics
- high-performance
- Temperature range
1,200 °C
(2,192 °F)
Description
Product Overview
Labotemp Horizontal Tube Furnace FMT-01 is a compact laboratory tube furnace designed for precision heat treatment up to 1200°C (working temperature ≤1100°C). It integrates a ∅40 mm high-purity quartz tube, a 205 mm single heating zone and SiC heating rods combined with resistance-wire elements under PID control to deliver ±1°C control accuracy and ±5°C temperature uniformity. The horizontal design and alumina ceramic-fiber chamber simplify sample loading and improve thermal efficiency.
Key Benefits
Features
Optional Accessories
Applications
Technical specifications
Labotemp Horizontal Tube Furnace FMT-01 is a compact laboratory tube furnace designed for precision heat treatment up to 1200°C (working temperature ≤1100°C). It integrates a ∅40 mm high-purity quartz tube, a 205 mm single heating zone and SiC heating rods combined with resistance-wire elements under PID control to deliver ±1°C control accuracy and ±5°C temperature uniformity. The horizontal design and alumina ceramic-fiber chamber simplify sample loading and improve thermal efficiency.
Key Benefits
- Accurate temperature control: SiC heating rods with PID control provide stable heating and ±1°C accuracy.
- High thermal efficiency and durability: quartz tube and alumina ceramic-fiber chamber minimize heat loss and extend component life.
- Programmability and repeatability: 30-segment time-temperature profiling for reproducible thermal cycles.
Features
- SiC heating rods and resistance-wire elements
- Maximum temperature rating up to 1200°C (working ≤1100°C)
- PID automatic control with phase-angle fired current limiting resistor
- 30-segment programmable time–temperature curve
- High-purity quartz or alumina furnace tube options
- Horizontal tube installation with single-zone temperature control
- K-type thermocouple
Optional Accessories
- Touchscreen controller (USB interface)
- PC connection software and external control unit (RKC, 16-segment program option)
- Safety interlock (power cut when door opens)
Applications
- Material synthesis and annealing
- Sintering and powder metallurgy
- Semiconductor process steps and sample preparation
- Nanomaterials research and thermal treatments
- Thermal stability and endurance testing in R&D and production
Technical specifications
- Maximum Temperature: 1200°C
- Standard Heating Zone Length (mm): 205
- Chamber Size (mm): 40 × 205
- Standard Tube Diameter (mm): ∅40
- Total Length of Furnace Tube (mm): 800
- Working Temperature (°C): ≤1100
- Temperature Accuracy (°C): ±1
- Furnace Tube Material: Quartz Tube
- Temperature Uniformity (°C): ±5
- Heating Rate (°C/min): 0 ~ 20
- External Size (mm): 505 × 420 × 646
- Heating Element: Resistance Wire
- Thermocouple Type: K Type
- Chamber Material: Alumina Ceramic Fiber
- Power Supply: AC 220V, 50/60Hz
- Net Weight: 68 kg
- Gross Weight: 80 kg
- Programmability: 30-segment time–temperature profile
