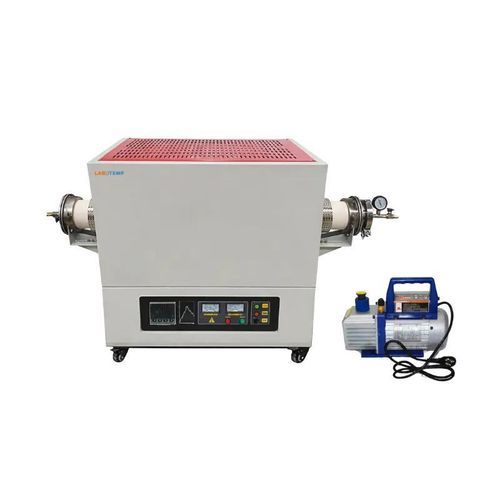

Annealing tube furnace FMT-08

heat treatmentsinteringfor scientific research

Overview
Labotemp High-Temperature Tube Furnace FMT-08 is a precision laboratory tube furnace designed for thermal processes up to 1400°C (working ≤1300°C). It integrates a ∮80 mm corundum tube, a 205 mm single heating zone and a 1000 mm total tube length. SiC heating rods with PID automatic control and 30-segment time–temperature programming provide ±1°C accuracy and ±5°C uniformity. An S-type thermocouple and alumina ceramic fiber insulation ensure stable operation within a compact footprint (630×590×767 mm).

Why choose Labotemp Tube Furnace FMT-08?

• High maximum temperature up to 1400°C
• Precision PID control with repeatable thermal profiles
• Industrial corundum tube and SiC heating system

Specifications
Maximum Temperature : 1400°C
Standard Heating Zone Length (mm) : 205
Chamber Size (mm) : 80 × 205
Standard Tube Diameter (mm) : ∮80
Total Length of Furnace Tube (mm) : 1000
External Size (W×D×H) : 630×590×767 mm
Working Temperature : ≤1300°C
Temperature Accuracy : ±1°C
Temperature Uniformity : ±5°C
Furnace Tube Material : Corundum Tube
Heating Element : SiC Heating Rod
Thermocouple Type : S Type
Chamber Material : Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz
Net Weight : 100 kg
Gross Weight : 135 kg

Features

• SiC heating rod
• Maximum operating temperature 1400°C
• PID automatic control via phase-angle fired resistor
• 30-segment time–temperature programmable curve
• Supports high-purity quartz or alumina furnace tubes
• Horizontal tube installation
• Single temperature zone design

Optional Accessories

• Touch screen (with USB interface)
• Computer connection software and control equipment (RKC, 16-segment program + interface + software)
• Safety interlock (power-off on door open)

Applications

• High-temperature material synthesis
• Sintering and annealing
• Crystal growth and powder metallurgy
• Ceramic processing
• Semiconductor diffusion and coating development
• Laboratory heat treatment experiments

Technical specifications

• Maximum Temperature: 1400°C (working ≤1300°C)
• Heating Zone Length: 205 mm
• Chamber Size: 80 × 205 mm
• Standard Tube Diameter: ∮80 mm
• Total Tube Length: 1000 mm
• Temperature Accuracy: ±1°C
• Temperature Uniformity: ±5°C
• Heating Element: SiC heating rod
• Thermocouple: S Type
• Furnace Tube Material: Corundum (supports high-purity quartz or alumina tubes)
• Chamber Insulation: Alumina ceramic fiber
• Power: AC 220V, 50Hz/60Hz
• Dimensions (W×D×H): 630×590×767 mm
• Net Weight: 100 kg; Gross Weight: 135 kg
