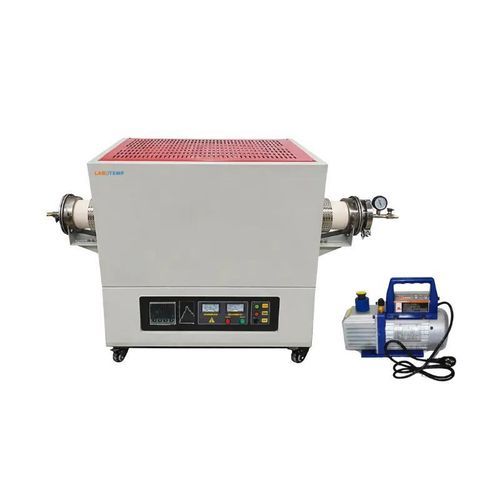

Annealing tube furnace FMT-13calcinationsinteringheating
Add to favorites
Compare this product
Characteristics
- Function
- heating, annealing, sintering, calcination
- Applications
- laboratory, for scientific research
- Type
- multi-gas, vacuum
- Designed for
- for ceramics, for metal
- Sterilization chamber material
- ceramic fiber
- Configuration
- benchtop, compact
- Other characteristics
- high-performance
- Temperature range
1,700 °C
(3,092 °F)
Description
Product Overview
Labotemp High-Temperature Tube Furnace FMT-13 is a precision laboratory horizontal tube furnace engineered for thermal processing up to 1700°C (recommended working ≤1550°C). It features a ∮40 mm corundum tube, a 205 mm single heating zone and 800 mm total tube length. MoSi₂ heating rods, PID control and 30-segment time–temperature programming provide ±1°C control accuracy and ±5°C uniformity. S/B-type thermocouple option and an alumina ceramic-fiber chamber ensure stable, efficient operation within a compact 630×590×767 mm footprint. The horizontal design supports controlled-atmosphere and vacuum configurations; touchscreen and PC-control options are available.
Key Features
Applications
Optional Accessories
Technical Specifications
Labotemp High-Temperature Tube Furnace FMT-13 is a precision laboratory horizontal tube furnace engineered for thermal processing up to 1700°C (recommended working ≤1550°C). It features a ∮40 mm corundum tube, a 205 mm single heating zone and 800 mm total tube length. MoSi₂ heating rods, PID control and 30-segment time–temperature programming provide ±1°C control accuracy and ±5°C uniformity. S/B-type thermocouple option and an alumina ceramic-fiber chamber ensure stable, efficient operation within a compact 630×590×767 mm footprint. The horizontal design supports controlled-atmosphere and vacuum configurations; touchscreen and PC-control options are available.
Key Features
- Maximum temperature rating 1700°C (working ≤1550°C)
- MoSi₂ heating rods suitable for ultra-high temperatures
- PID automatic control with phase-angle current limiting
- 30-segment time–temperature programming for repeatable profiles
- Corundum (standard) or high-purity quartz furnace tube options
- Horizontal single-zone configuration for uniform heating
Applications
- High-temperature synthesis, sintering, annealing, calcination and crystal growth for ceramics, metals, semiconductors and advanced-material R&D and production
Optional Accessories
- Touchscreen controller with USB interface
- PC connection kit and control software (RKC, 16-segment program + interface + software)
- Safety interlock (power cut when door opens)
Technical Specifications
- Maximum Temperature: 1700°C
- Working Temperature: ≤1550°C
- Heating Zone Length: 205 mm
- Chamber Size: 40×205 mm
- Standard Tube Diameter: ∮40 mm
- Total Tube Length: 800 mm
- External Dimensions: 630×590×767 mm
- Heating Rate: 0–20°C/min
- Temperature Accuracy: ±1°C
- Temperature Uniformity: ±5°C
- Furnace Tube Material: Corundum (alumina)
- Heating Element: MoSi₂ heating rods
- Thermocouple Type: Type B (option S/B)
- Chamber Material: Alumina ceramic fiber
- Power Supply: AC 220V, 50/60Hz
- Package Dimensions: 870×750×1220 mm
- Net Weight: 130 kg
- Gross Weight: 165 kg
- Accessories Weight: 10 kg
- Accessories Package Size: 900×200×200 mm
- Product Package Size: 750×750×1120 mm
