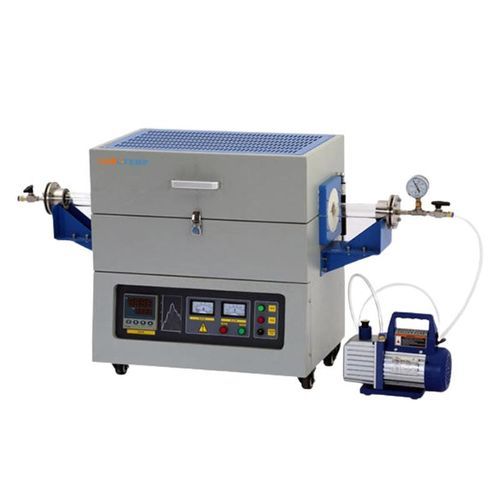

Heat treatment tube furnace FMT-05

heatingannealingsintering

Overview
Labotemp Quartz Tube Furnace FMT-05 is a compact laboratory/industrial tube furnace engineered for precision heat treatment up to 1200°C (working ≤1100°C). It integrates a ∮40 mm quartz tube with a 440 mm standard heating zone and 1000 mm total tube length. The unit uses resistance-wire heating, PID automatic control and 30-segment programmable profiles for repeatable ramp/soak cycles with ±1°C accuracy and ±5°C uniformity in a 740×420×668 mm footprint.

Key benefits

• Precise process control: PID regulation with 30-segment time–temperature programming for reproducible cycles.
• Contamination-minimizing quartz tube: inert tube material suitable for sensitive material processing.
• Consistent heating: single 440 mm zone ensures uniform temperature across samples.

Features

• 440 mm heating zone
• 1200°C maximum temperature (working ≤1100°C)
• PID automatic control with phase-angle firing of the resistor
• 30-segment programmable time–temperature curves
• Compatible with high-purity quartz or alumina tubes
• Horizontally installed furnace tube design
• Single-zone configuration

Applications

• Material synthesis and preparation
• Annealing and sintering of ceramics and metals
• Semiconductor research and processing
• Powder metallurgy and thermal treatments
• Nanomaterial preparation and thermal stability testing

Optional accessories

• Touchscreen controller (USB interface)
• PC connection software and control interface (RKC or equivalent, 16-segment program + interface + software)
• Safety interlock (automatic power cut when door is opened)

Technical specifications

• Maximum Temperature: 1200°C
• Standard Heating Zone Length (mm): 440
• Chamber Size (mm): 40×440
• Standard Tube Diameter (mm): ∮40
• Total Length of Furnace Tube (mm): 1000
• Working Temperature: ≤1100°C
• Temperature Accuracy: ±1°C
• Furnace Tube Material: Quartz Tube
• Temperature Uniformity: ±5°C
• Heating Rate: 0 ~ 20°C/min
• External Size: 740×420×668 mm
• Heating Element: Resistance Wire
• Thermocouple Type: K Type
• Chamber Material: Alumina Ceramic Fiber
• Power Supply: AC 220V, 50Hz/60Hz
• Net Weight: 80 kg
• Gross Weight: 100 kg
• Accessories Weight: 8 kg
• Accessories Package Size: 1100×200×205 mm
• Main Unit Packaging Size: 900×600×1050 mm
