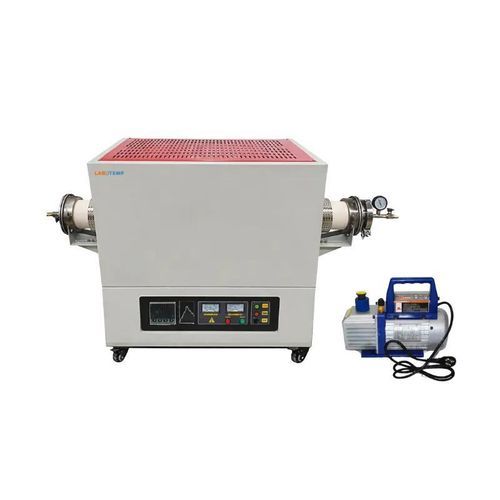

Annealing tube furnace FMT-16

calcinationdiffusionsintering

Product overview
The Labotemp corundum tube furnace FMT-16 is a horizontal laboratory tube furnace rated to 1700°C (working ≤1550°C). The unit integrates an ∮80 mm corundum tube, a 350 mm heating zone and a 1200 mm total tube length within an 80×350 mm chamber. MoSi₂ heating rods, a B‑type thermocouple and PID control with 30‑segment time–temperature programming enable ±1°C accuracy and ±5°C uniformity at heating rates of 0–20°C/min. The horizontal tube design supports controlled‑atmosphere and vacuum configurations; touchscreen, PC software and safety interlocks are available as options.

Key benefits

• Ultra‑high operating capability: up to 1700°C (working ≤1550°C).
• Precise process control: PID with B‑type thermocouple and repeatable multi‑segment profiles.
• Accommodation for larger samples: ∮80 mm tube and 1200 mm tube length.

Features

• Temperature uniformity ±5°C.
• Maximum temperature 1700°C.
• PID automatic control with phase‑angle fired current limiting.
• 30‑segment programmable time–temperature curves.
• Supports high‑purity quartz or alumina as alternative tube materials.
• Horizontal tube installation with single heating zone design.

Applications

• High‑temperature material synthesis, sintering, annealing, calcination, crystal growth, powder metallurgy, ceramic processing and semiconductor diffusion; suitable for advanced materials research.

Optional accessories

• Touchscreen with USB interface.
• PC connection kit and control software (RKC, 16‑segment program + interface + software).
• Safety interlock (power cut when door opened).

Specifications
Maximum Temperature : 1700°C
Standard Heating Zone Length (mm) : 350
Chamber Size (mm) : 80×350
Standard Tube Diameter (mm) : ∮80
Total Length of Furnace Tube (mm) : 1200
External Size (mm) : 724×590×807
Working Temperature (℃) : ≤1550
Heating Rate : 0 ~ 20℃/min
Temperature Accuracy : ±1°C
Temperature Uniformity : ±5°C
Furnace Tube Material : Corundum Tube
Heating Element : MoSi₂ Heating Rod
Thermocouple Type : B Type
Chamber Material : Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz
Package Dimensions : 870×750×1220 mm
Accessories Package Size : 1200×160×180 mm
Net Weight : 150 kg
Gross Weight : 180 kg
Accessories Weight : 11 kg

Technical specifications

• Model: FMT-16
• Maximum temperature: 1700°C (working ≤1550°C)
• Heating zone length: 350 mm
• Chamber size: 80×350 mm
• Tube diameter: ∮80 mm; total tube length: 1200 mm
• Heating element: MoSi₂ heating rods
• Thermocouple: B Type
• Control: PID with 30‑segment time–temperature programming (0–20°C/min)
• Temperature accuracy: ±1°C; uniformity: ±5°C
• Chamber material: alumina ceramic fiber
• Tube material: corundum (supports high‑purity quartz or alumina tubes)
• Power supply: AC 220V, 50Hz/60Hz
• External dimensions: 724×590×807 mm; package dimensions: 870×750×1220 mm
• Net weight: 150 kg; gross weight: 180 kg
