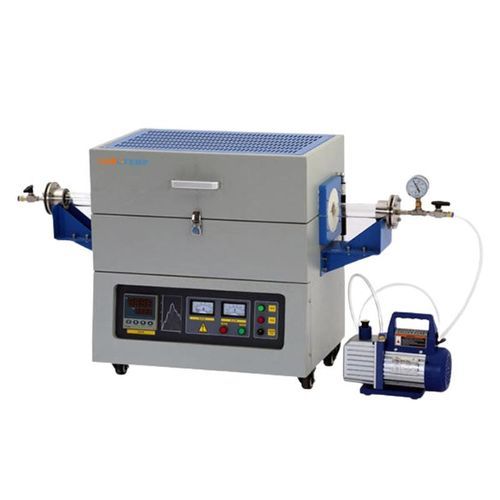

Annealing tube furnace FMT-06

sinteringheatingfor scientific research

Product overview
Labotemp Quartz Tube Furnace FMT-06 is a precision laboratory tube furnace designed for uniform heat treatment up to 1200°C (recommended working temperature ≤1100°C). It features a high-purity ∮80 mm quartz tube, a single 440 mm heating zone and a total tube length of 1000 mm. Resistance-wire heating with PID control and 30-segment programmable time–temperature curves delivers ±1°C accuracy and ±5°C uniformity. The alumina ceramic-fiber chamber improves thermal efficiency. The horizontal tube layout facilitates loading and supports controlled-atmosphere or vacuum configurations with optional accessories.

Key features

• PID controller with 30-segment programmable time–temperature curves
• Maximum temperature: 1200°C (working ≤1100°C)
• High-purity quartz tube, horizontal installation (∮80 mm)
• Single-zone 440 mm heating zone for uniform temperature distribution
• Resistance wire heating with PID automatic control (phase-angle firing)
• Temperature accuracy ±1°C; uniformity ±5°C

Optional accessories

• Touch screen controller (with USB interface)
• Computer connection software and control interface (RKC, 16-segment program + interface + software)
• Safety interlock (automatic power-off when door is opened)

Applications

• Material synthesis, annealing and sintering
• Semiconductor processing and powder metallurgy
• Nanomaterial preparation and thermal stability testing
• Research and industrial laboratory heat-treatment tasks

Specifications (table)
Maximum Temperature : 1200°C
Standard Heating Zone Length (mm) : 440
Chamber Size (mm) : 80×440
Standard Tube Diameter (mm) : ∮80
Total Length of Furnace Tube (mm) : 1000
Working Temperature (℃) : ≤1100
Temperature Accuracy (℃) : ±1
Furnace Tube Material : Quartz Tube
Temperature Uniformity (℃) : ±5
Heating Rate (℃/min) : 0 ~ 20℃/min
External Size : 740×420×668
Heating Element : Resistance Wire
Thermocouple Type : K Type
Chamber Material : Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz
Net Weight : 80kg
Gross Weight : 100kg

Technical specifications

• Model: FMT-06
• Maximum temperature: 1200°C
• Working temperature: ≤1100°C
• Heating zone length: 440 mm (single zone)
• Tube total length: 1000 mm
• Tube diameter: ∮80 mm, material: high-purity quartz
• Chamber material: alumina ceramic fiber
• Heating element: resistance wire
• Control: PID controller, 30-segment programmable time–temperature curves
• Temperature accuracy: ±1°C
• Temperature uniformity: ±5°C
• Heating rate: 0–20°C/min
• Thermocouple: K Type
• External size (mm): 740×420×668
• Power supply: AC 220V, 50Hz/60Hz
• Net weight: 80 kg
• Gross weight: 100 kg
