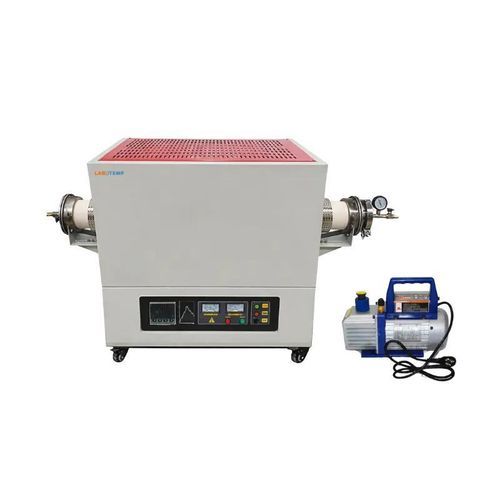

Annealing tube furnace FMT-18calcinationdiffusionheat treatment
Add to favorites
Compare this product
Characteristics
- Function
- annealing, sintering, calcination, diffusion, heat treatment
- Applications
- laboratory, for scientific research, for general applications, for temperature testing
- Designed for
- ceramic
- Sterilization chamber material
- ceramic fiber
- Temperature control
- high-temperature
- Configuration
- benchtop
- Other characteristics
- high-performance
- Temperature range
1,700 °C
(3,092 °F)
Description
Product overview
Labotemp Tube Furnace FMT-18 is a precision horizontal tube furnace for ultra-high-temperature processing up to 1700°C (working temperature ≤1550°C). It is fitted with a corundum tube (∮80 mm), a 440 mm standard heating zone, 1200 mm total tube length and a 80×440 mm chamber. MoSi₂ heating rods, B-type thermocouple, PID control and 30-segment programmable profiles deliver ±1°C accuracy and ±5°C uniformity with 0–20°C/min ramps. The chamber is insulated with alumina ceramic fiber.
Key benefits
Features
Applications
Optional accessories
Technical specifications
Labotemp Tube Furnace FMT-18 is a precision horizontal tube furnace for ultra-high-temperature processing up to 1700°C (working temperature ≤1550°C). It is fitted with a corundum tube (∮80 mm), a 440 mm standard heating zone, 1200 mm total tube length and a 80×440 mm chamber. MoSi₂ heating rods, B-type thermocouple, PID control and 30-segment programmable profiles deliver ±1°C accuracy and ±5°C uniformity with 0–20°C/min ramps. The chamber is insulated with alumina ceramic fiber.
Key benefits
- Large-sample capability: ∮80 mm tube diameter and extended tube length for long or bulky specimens.
- Ultra-high-temperature operation using MoSi₂ heating elements for reliable performance up to 1700°C.
- Accurate process control via PID regulation, B-type thermocouple and 30-segment time–temperature profiling.
Features
- ∮80 mm tube diameter
- Maximum temperature: 1700°C (working ≤1550°C)
- PID automatic control (phase-angle firing with current limiting)
- 30-segment programmable time–temperature curve
- Compatible furnace tubes: high-purity quartz or corundum (horizontal installation)
- Single-zone heating design
- Alumina ceramic-fiber chamber insulation
Applications
- High-temperature material synthesis, sintering, annealing and calcination
- Crystal growth and powder metallurgy
- Semiconductor diffusion processes and advanced materials R&D
Optional accessories
- Touchscreen with USB interface
- PC connection software and control modules (RKC, 16-segment program + interface + software)
- Safety interlock (power cut when door is opened)
Technical specifications
- Maximum temperature: 1700°C
- Standard heating zone length (mm): 440
- Chamber size (mm): 80×440
- Standard tube diameter (mm): ∮80
- Total furnace tube length (mm): 1200
- External dimensions (mm): 794×590×800
- Working temperature (°C): ≤1550
- Heating rate: 0 ~ 20°C/min
- Temperature accuracy: ±1°C
- Temperature uniformity: ±5°C
- Furnace tube material: corundum tube
- Heating element: MoSi₂ heating rod
- Thermocouple type: B type
- Chamber material: alumina ceramic fiber
- Power supply: AC 220V, 50Hz/60Hz
- Packaging dimensions (mm): 870×750×1220
- Net weight: 170 kg
- Gross weight: 210 kg
