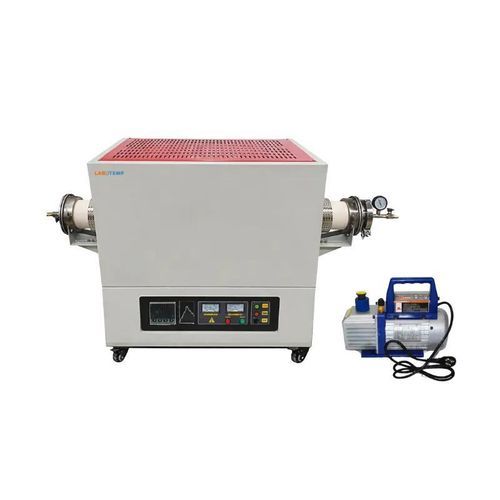

Annealing tube furnace FMT-15calcinationsinteringfor scientific research
Add to favorites
Compare this product
Characteristics
- Function
- sintering, annealing, calcination
- Applications
- for scientific research
- Type
- vacuum, multi-gas
- Designed for
- for ceramics, for metal
- Sterilization chamber material
- ceramic fiber
- Temperature range
1,700 °C
(3,092 °F)
Description
Product Overview
Labotemp FMT-15 is a high-temperature horizontal tube furnace designed for industrial research and advanced materials processing. Rated to 1700°C (working ≤1550°C), it features a ∅40 mm corundum tube, 350 mm effective heating zone and 1200 mm total tube length. MoSi₂ heating elements, B-type thermocouple and PID control with 30-segment programming provide ±1°C accuracy and ±5°C uniformity. Alumina ceramic-fiber insulation and a ramp rate of 0–20°C/min ensure stable and repeatable thermal cycles.
Key Benefits
Features
Applications
Optional Accessories
Technical Specifications
Labotemp FMT-15 is a high-temperature horizontal tube furnace designed for industrial research and advanced materials processing. Rated to 1700°C (working ≤1550°C), it features a ∅40 mm corundum tube, 350 mm effective heating zone and 1200 mm total tube length. MoSi₂ heating elements, B-type thermocouple and PID control with 30-segment programming provide ±1°C accuracy and ±5°C uniformity. Alumina ceramic-fiber insulation and a ramp rate of 0–20°C/min ensure stable and repeatable thermal cycles.
Key Benefits
- Industrial durability: corundum tube and MoSi₂ elements for sustained high-temperature operation.
- Accurate process control: PID regulation, B-type thermocouple and programmable 30-segment profiles for repeatability.
- Flexible setup: horizontal tube design suitable for controlled-atmosphere or vacuum processing.
Features
- Touch-safe external design
- Maximum temperature 1700°C (working ≤1550°C)
- PID automatic control with phase-angle firing
- 30-segment time–temperature programming
- High-purity corundum or quartz furnace tube options
- Horizontal tube installation, single temperature zone
Applications
- High-temperature synthesis and materials processing
- Sintering, annealing and calcination
- Crystal growth for ceramics, metals and semiconductors
- Advanced materials research and pilot-scale testing
Optional Accessories
- Touchscreen controller (USB interface)
- PC connection software and control interface (RKC or equivalent)
- Safety interlock with automatic power-off on door opening
Technical Specifications
- Maximum Temperature: 1700°C
- Working Temperature: ≤1550°C
- Standard Heating Zone Length (mm): 350
- Chamber Size (mm): 40×350
- Standard Tube Diameter (mm): ∅40
- Total Length of Furnace Tube (mm): 1200
- External Size (mm): 794×590×800
- Heating Rate: 0–20°C/min
- Temperature Accuracy: ±1°C
- Temperature Uniformity: ±5°C
- Furnace Tube Material: Corundum tube
- Heating Element: MoSi₂ heating rod
- Thermocouple Type: B type
- Chamber Material: Alumina ceramic fiber
- Power Supply: AC 220V, 50Hz/60Hz
- Package Dimensions (mm): 870×750×1220
- Net Weight: 150 kg
- Gross Weight: 180 kg
