Annealing tube furnace FMT-10

heat treatmentsinteringfor scientific research

Overview

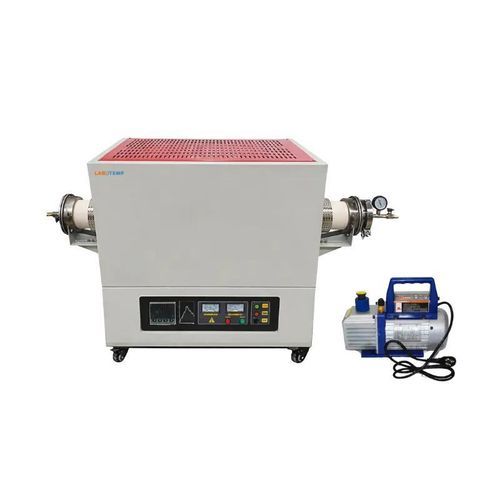

Labotemp High-Temperature Tube Furnace FMT-10 is a precision laboratory tube furnace engineered for advanced thermal processing up to 1400°C (working ≤1300°C). It features an ∮80 mm corundum tube, a single 350 mm heating zone and a total furnace tube length of 1000 mm. SiC heating rods with PID automatic control and a 30-segment time–temperature programmer provide repeatable profiles with ±1°C accuracy and ±5°C uniformity.

Applications

• High-temperature material synthesis
• Sintering
• Annealing and crystal growth
• Powder metallurgy and ceramic processing
• Semiconductor diffusion and coating development
• Laboratory heat treatment and research/production thermal processing

Key benefits

• Ultra‑high temperature capability: Reliable operation up to 1400°C
• Precision control: PID regulation with repeatable thermal profiles (±1°C)
• Industrial-grade construction: Corundum tube and SiC heating system for durability
• Configurable for vacuum or controlled atmosphere applications

Features

• ±1°C temperature accuracy
• 1400°C maximum operating temperature (working ≤1300°C)
• PID automatic control via phase-angle fired current limiting
• 30-segment time–temperature curve programmable
• Compatible with high-purity quartz or alumina (corundum) furnace tubes (horizontal installation)
• Single temperature zone design (350 mm)

Optional accessories

• Touchscreen interface (USB)
• PC connection software and control unit (RKC, 16‑segment program + interface + software)
• Safety interlock (automatic shut-off on door open)

Specifications
Maximum Temperature: 1400°C
Standard Heating Zone Length (mm): 350
Chamber Size (mm): 80×350
Standard Tube Diameter (mm): ∮80
Total Length of Furnace Tube (mm): 1000
External Size (mm): 724×590×807
Working Temperature (°C): ≤1300
Temperature Accuracy: ±1°C
Furnace Tube Material: Corundum tube (alumina)
Thermocouple Type: S Type
Temperature Uniformity: ±5°C
Heating Element: SiC heating rod
Chamber Insulation: Alumina ceramic fiber
Power Supply: AC 220V, 50Hz/60Hz
Net Weight: 95 kg
Gross Weight: 125 kg
Accessories Weight: 14 kg
Product Package Size: 860×760×1150 mm
Accessories Package Size: 1100×230×300 mm

Technical specifications

• Maximum Temperature: 1400°C
• Working Temperature: ≤1300°C
• Standard heating zone length: 350 mm
• Chamber size: 80 × 350 mm
• Standard tube diameter: ∮80 mm
• Total tube length: 1000 mm
• External dimensions (W×D×H): 724 × 590 × 807 mm
• Temperature accuracy: ±1°C
• Temperature uniformity: ±5°C
• Furnace tube material: corundum (alumina)
• Heating element: SiC (silicon carbide) heating rod
• Thermocouple type: S type
• Insulation material: alumina ceramic fiber
• Power supply: AC 220V, 50Hz/60Hz
• Net weight: 95 kg
• Gross weight: 125 kg
