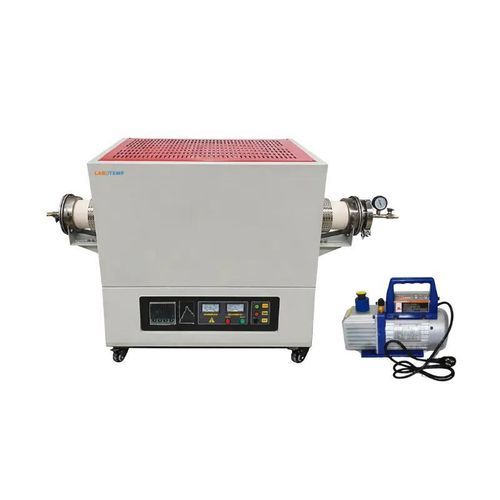

Annealing tube furnace FMT-17

calcinationdiffusionsintering

Product overview
Labotemp FMT-17 is a precision horizontal tube furnace designed for laboratory and small-scale production processes up to 1700°C (working ≤1550°C). It features a ∮40 mm corundum tube, a single 440 mm heating zone (total tube length 1200 mm), MoSi₂ heating rods, B-type thermocouple and PID automatic control to deliver fast ramps and stable temperature control within a compact 794×590×800 mm footprint.

Features

• Alumina insulation and alumina ceramic-fiber chamber for thermal efficiency
• Maximum rated temperature 1700°C (working ≤1550°C)
• PID automatic control with current-limiting phase-angle firing for ±1°C accuracy
• 30-segment programmable time–temperature profiles
• Compatible with high-purity quartz or alumina furnace tubes
• Horizontal single-zone tube configuration suitable for controlled-atmosphere and vacuum setups

Optional accessories

• Touch screen with USB interface
• Computer connection kit and control software (RKC, 16-segment program + interface + software)
• Safety interlock (automatic power-off when door is opened)

Applications

• High-temperature material synthesis, sintering and annealing
• Calcination and crystal growth
• Powder metallurgy and semiconductor diffusion
• Advanced materials research in ceramics, metals and semiconductors

Technical specifications

• Maximum Temperature: 1700°C
• Standard Heating Zone Length (mm): 440
• Chamber Size (mm): 40×440
• Standard Tube Diameter (mm): ∮40
• Total Length of Furnace Tube (mm): 1200
• External Size: 794×590×800
• Working Temperature (°C): ≤1550
• Heating Rate: 0 ~ 20°C/min
• Temperature Accuracy: ±1°C
• Temperature Uniformity: ±5°C
• Furnace Tube Material: Corundum Tube
• Heating Element: MoSi₂ Heating Rod
• Thermocouple Type: B Type
• Chamber Material: Alumina Ceramic Fiber
• Power Supply: AC 220V, 50Hz/60Hz
• Package Dimensions: 870×750×1220
• Net Weight: 170kg
• Gross Weight: 210kg
