Annealing tube furnace FMT-02

sinteringlaboratoryfor scientific research

Overview

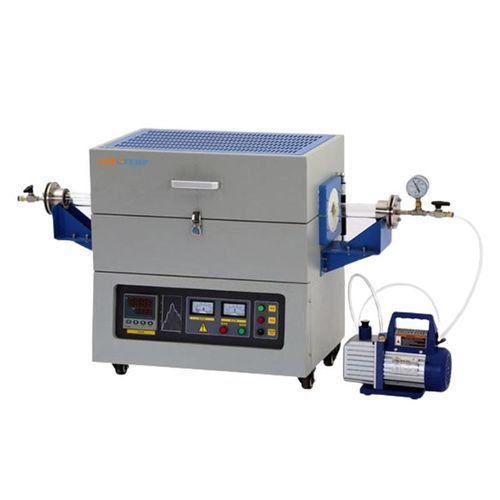

Labotemp Horizontal Tube Furnace FMT-02 is a laboratory horizontal tube furnace engineered for precision heat treatment up to 1200°C (maximum) with a recommended working temperature ≤1100°C. It features a high-purity quartz tube (∮80 mm), an internal chamber of 80×205 mm and a single 205 mm heating zone. Resistance-wire heating elements combined with PID automatic control provide temperature accuracy ±1°C and uniformity ±5°C. The furnace supports 30-segment programmable time–temperature profiles for controlled thermal processing in research and industrial laboratories.

Applications

• Material synthesis
• Annealing and sintering
• Semiconductor processing
• Powder metallurgy
• Nanomaterial preparation
• Thermal stability testing in research and industrial environments

Key Features

• PID automatic control for stable, repeatable temperature regulation
• Maximum temperature 1200°C (working ≤1100°C)
• Resistance-wire heating with phase-angle (current-limiting) firing
• 30-segment programmable time–temperature curve for complex profiles
• High-purity quartz tube (option: alumina tube); horizontal tube installation
• Single heating zone design (205 mm)
• Alumina ceramic-fiber chamber for thermal efficiency

Optional Accessories

• Touch screen controller (USB interface)
• PC connection software and control equipment (RKC, 16-segment program + interface + software)
• Safety interlock (power cut when door is opened)

Why Choose Labotemp Tube Furnace FMT-02?

• Precision thermal control: PID regulation ensures stable, reproducible high-temperature processing.
• Suitable for research and pilot-scale industrial use: single-zone design and programmable profiles support material development and testing.
• Configurable tube and chamber materials to match process requirements.

Specifications

• Model: FMT-02
• Maximum Temperature: 1200°C
• Recommended Working Temperature: ≤1100°C
• Heating Zone Length (mm): 205 (single zone)
• Chamber Size (mm): 80 × 205
• Standard Tube Diameter (mm): ∮80
• Total Furnace Tube Length (mm): 1000
• Temperature Accuracy (°C): ±1
• Temperature Uniformity (°C): ±5
• Heating Rate (°C/min): 0–20
• Heating Element: Resistance wire
• Thermocouple Type: K Type
• Chamber Insulation Material: Alumina ceramic fiber
• Power Supply: AC 220V, 50Hz/60Hz
• External Dimensions (mm): 505 × 420 × 646
• Packaging Dimensions (mm): 800 × 600 × 1100
• Accessories Packaging Dimensions (mm): 900 × 150 × 160
• Net Weight: 68 kg
• Gross Weight: 80 kg
• Accessories Gross Weight: 7 kg
