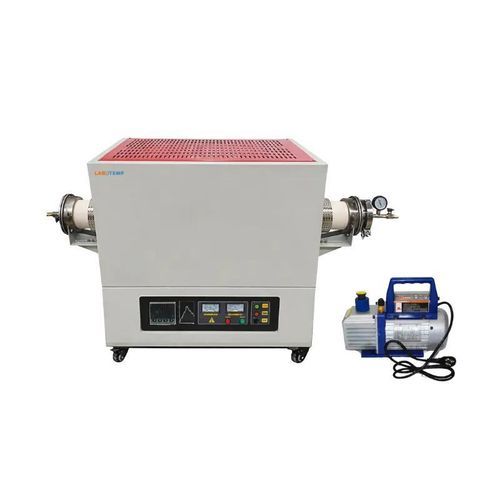

Annealing tube furnace FMT-07

diffusionsinteringheating

Overview
Labotemp Horizontal Tube Furnace FMT-07 is a laboratory/industrial-grade horizontal tube furnace designed for high-temperature sintering, crystal growth and advanced R&D. Rated to 1400°C (recommended working ≤1300°C) with a single-zone heating length of 205 mm and a ∮40 mm corundum (alumina) tube. The unit integrates S-type thermocouple measurement, SiC heating rods and an alumina-fiber insulated chamber, with PID control and 30-segment programmable time–temperature profiles.

Why choose FMT-07?

• Precision temperature control: PID regulation with 30-segment programmable profiles for repeatable ramps and dwells.
• High-temperature capability: up to 1400°C (working ≤1300°C) suitable for ceramic processing and crystal growth experiments.
• Accurate sensing: S-type thermocouple, temperature accuracy ±1°C and uniformity ±5°C.
• Industrial materials: corundum tube and SiC heating rods with alumina-fiber chamber for stable high-temperature operation.

Features

• Horizontal single-zone design with 205 mm heating length.
• Maximum temperature 1400°C; recommended working temperature ≤1300°C.
• PID automatic control with phase-angle fired current limiting and 30 programmable segments.
• Compatible with high-purity quartz or alumina tube options.
• Optional touchscreen or PC interface and computer connection software for profile management.

Applications

• High-temperature material synthesis, sintering and annealing.
• Crystal growth, ceramic processing and semiconductor research.
• Powder metallurgy, diffusion experiments and coating development.
• Laboratory and industrial R&D where controlled thermal profiles are required.

Optional accessories

• Touchscreen controller with USB interface.
• Computer connection software and control equipment (RKC interface, program and software).
• Safety interlock (power cut-off when door is opened).

Technical specifications

• Maximum Temperature: 1400°C
• Standard Heating Zone Length (mm): 205
• Chamber Size (mm): 40×205
• Standard Tube Diameter (mm): ∮40
• Total Length of Furnace Tube (mm): 800
• External Size (mm): 630×590×767
• Working Temperature (°C): ≤1300
• Temperature Accuracy: ±1°C
• Furnace Tube Material: Corundum (alumina) tube
• Thermocouple Type: S-type
• Temperature Uniformity: ±5°C
• Heating Element: SiC heating rods
• Chamber Material: Alumina ceramic fiber
• Power Supply: AC 220V, 50Hz/60Hz
• Net Weight: 80 kg
• Gross Weight: 108 kg
