Resting electrocardiograph ECG-1103L
3-channeldigitalUSB

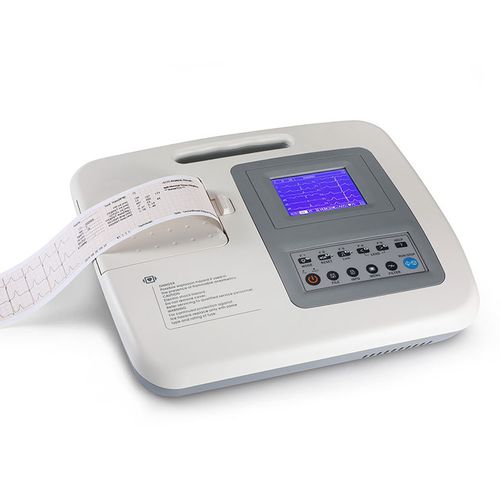

Resting electrocardiograph - ECG-1103L - Lepu Medical - 3-channel / digital / USB
Resting electrocardiograph - ECG-1103L - Lepu Medical - 3-channel / digital / USB

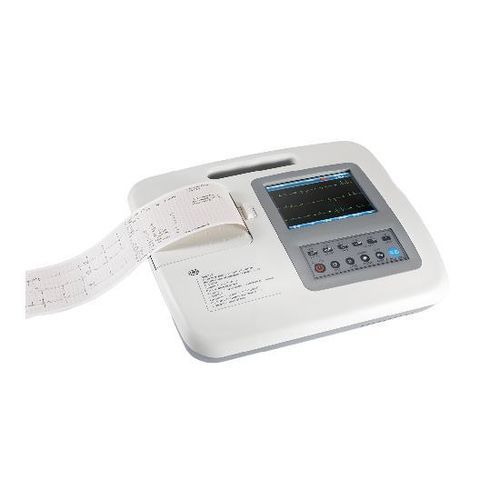

Resting electrocardiograph - ECG-1103L - Lepu Medical - 3-channel / digital / USB - image - 2
Add to favorites
Compare this product
Go to the Lepu Medical website for more information

Characteristics

Applications
resting
Number of channels
3-channel
Technology
digital
Connectivity
USB
Screen size (inches)

5.6 unit

Description

Product Features
  • 5‑inch color touchscreen (model‑dependent) for direct touch operation.
  • AC mains powered or built‑in rechargeable lithium battery (DC 12V) for portable use.
  • Supports automatic 6/9/12‑lead ECG acquisition, display and heart‑rate detection; simultaneous 12‑lead acquisition.
  • Three working modes: Auto, Manual and R‑R; four sampling modes: Pre‑sampling, Real‑time, Periodic and Trigger.
  • Automatic pacing detection and marking; freeze function to hold waveform on screen for review.
  • Suppression of baseline drift and EMG/HUM interference with selectable filters.
  • Save, preview, export, upload, print and search patient data; export formats include DAT, XML, JPEG, PDF, HL7.
  • Connectivity via wired Ethernet, USB, optional Wi‑Fi and SD card (model‑dependent).


Technical Specifications
  • Safety standard: IEC Class I, Type CF.
  • Acquisition mode: simultaneous 12‑lead acquisition; input circuit floating with defibrillator and pacemaker protection.
  • A/D converter: 12‑bit; time constant ≥ 3.2 s; frequency response 0.05–165 Hz.
  • Sensitivity: 2.5, 5, 10, 20, 40 mm/mV and Auto; input impedance ≥ 50 MΩ; input circuit current ≤ 50 nA.
  • Calibration voltage: 1 mV ± 2%; noise level < 15 μV p‑p; CMRR > 100 dB; patient leakage < 10 μA.
  • Filters: EMG 35–45 Hz (‑3 dB); ADS Auto (0.15–0.50 Hz); HUM 50/60 Hz (‑20 dB).
  • Paper speed: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s; paper width 63 mm or 80 mm; recording roll 20 m / 30 m.
  • Power supply: AC 110/220 V 50/60 Hz or DC 12 V with built‑in rechargeable lithium battery.
  • Dimensions (unit): 345 × 300 × 80 mm; carton: 415 × 195 × 380 mm; net weight ≈ 2.5 kg; gross weight ≈ 4.5 kg.


Ordering Information
  • MODEL 1103L — Auto measure: Yes; Auto analysis: Yes; LCD size: 5.7"; Display: 12CH; Paper width: 80 mm; Storage: Yes; USB: Yes; Built‑in SD: 5000 records.
  • MODEL 1103B — Auto measure: Yes; Auto analysis: Yes; LCD size: 192×64; Display: 3CH; Paper width: 63 mm; Storage: No; USB: Optional; Built‑in SD: No.
  • MODEL 1103G — Auto measure: Yes; Auto analysis: Yes; LCD size: 3.8"; Display: 12CH; Paper width: 63 mm; Storage: Yes; USB: Optional; Built‑in SD: Optional.


Clinical and Workflow Notes
  • Suitable for wards, emergency, outpatient and mobile diagnostics requiring rapid ECG acquisition and reporting.
  • Cine‑loop playback and auto‑save on print facilitate review of transient arrhythmias and documentation.
  • Supports barcode/magnetic card patient entry and optional PC data management for integration with clinical systems (HL7 compatible).
