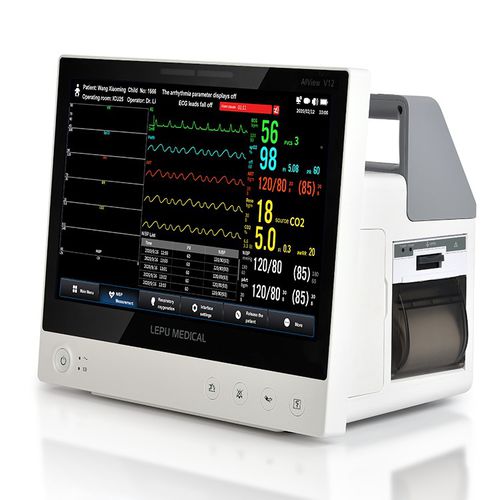

Tabletop patient monitor AIView V10

ECGRESPTEMP

Overview
The Lepu AIView V10/V12 is a next-generation multi-parameter patient monitor combining an ergonomic hardware design with a flat interactive software interface. It supports diverse hospital workflows and improves bedside efficiency for clinical teams.

Early Warning Score (EWS)
The monitor supports Early Warning Score (EWS) to assist clinical assessment and escalation decisions.

Clinical features

• 28-type arrhythmia analysis for comprehensive heart rhythm monitoring
• ST & QT analysis, HRV analysis (≥ 5 min), NIBP analysis, Glasgow Coma Scale, Pain score
• MoveOXY anti-motion SpO2 algorithm for reliable oxygen saturation during motion or poor peripheral perfusion
• Optional modules: 2-channel IBP, ETCO2, Nellcor SpO2, Suntech NIBP
• Optional accessories: barcode scanner, infrared ear/forehead thermometer

Product features

• Multi-parameter measurement: ECG (3/5/6/10 leads) with synchronous 12-lead display, Dual TEMP, SpO2, NIBP, RESP, PR, ETCO2 (optional), 2-channel IBP (optional)
• Capacitive touch screen with gesture support for intuitive operation
• Ultra-high resolution display and ergonomically tilted screen for improved bedside visibility
• Dual alarm lights for long-distance alarm identification
• Fanless design to minimize operational noise

Synchronous 12-lead ECG
Supports multiple electrode connections (3/5/6/10) and displays up to 12 leads simultaneously on a single screen, providing diagnostic-quality ECG presentation comparable to a dedicated ECG machine.

Excellent IT workflow
Supports wired and wireless connection to a central monitoring station (CMS), bedside observation, HL7 output for EMR integration and bed-to-bed observation without CMS.

Portable and mounting options

• Integrated handle for easy transfer and accessory storage
• Multiple mounting solutions: wall mount and trolley configurations

Technical specifications

• Model family: AIView V10 / V12
• Monitoring parameters: ECG (3/5/6/10 leads, synchronous 12-lead display), SpO2 (MoveOXY), NIBP, RESP, PR, Dual TEMP, ETCO2 (optional), IBP (2-channel optional)
• Arrhythmia: 28-type arrhythmia analysis
• Advanced analyses: ST & QT, HRV (≥5 min), EWS, Glasgow Coma Scale, Pain score
• Display: capacitive touch screen, ultra-high resolution, tilted ergonomic design
• Alarms: dual alarm lights
• Design: fanless
• Connectivity: wired/wireless network, CMS support, HL7 output for EMR
• Optional peripherals: Nellcor SpO2, Suntech NIBP, ETCO2, barcode scanner, infrared ear/forehead thermometer
• Mobility: integrated handle, wall and trolley mounting solutions
