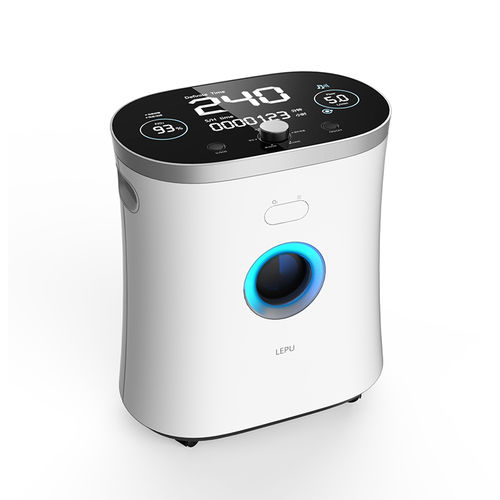

Home care oxygen generator LF05A mobile
Add to favorites
Compare this product
Characteristics
- Applications
- home care
- Configuration
- mobile
- Flow rate
Max.: 5 l/min
(1.321 us gal/min)Min.: 1 l/min
(0.264 us gal/min)- Weight
16.5 kg
(36.4 lb)
Description
Product overview
Oxygen Concentrator Generator Structural Composition
Unique Patent of Medical Oxygen Concentrator Generator
Condensate drainage function
The air compressor includes an internal condenser tube that stores water condensed from hot vapor. On startup, a solenoid valve controls high-speed airflow to atomize and spray the condensed water out of the condenser tube. On shutdown, the solenoid valve uses high-speed airflow to blow moisture from the riser tube, reducing moisture ingress to the molecular sieve tower and improving oxygen production efficiency and molecular sieve lifetime.
Porous muffler hose function
The porous hose is mounted in the inlet muffler box and the denitrogenation muffler box. When higher-noise airflow passes through the small holes of the hose, acoustic energy is largely converted to mechanical energy, thereby reducing compressor noise and noise during denitrogenation.
Ordering Informations
Catalogue No.: Y9
Technical Parameters
Product dimension: 420x210x509 mm
Net weight: About 12 kg
Flow range: 1-9 L/min adjustable
Maximum outlet pressure: 40±10% kPa
Electrical classification: Class Ⅱ Type B
Running noise: ＜ 51 dB（A）
Oxygen concentration: 93%±3% (percent by volume at 3 L/min)
Nominal voltage: AC 220V 50Hz
Input power: 250 VA
Characteristics / Technical specifications
- Built-in water tank
- Remote control
- Up to 11 alarm items
- Hidden oxygen/atomization nozzle for easier cleaning
- Rear storage compartment for remote or nasal cannula
Oxygen Concentrator Generator Structural Composition
- Guangshun high-quality high-power oil-free air compressor
- French CECA imported molecular sieve for stable, long-lasting oxygen generation
Unique Patent of Medical Oxygen Concentrator Generator
- Condensate drainage design (patent)
- Porous muffler hose (patent)
Condensate drainage function
The air compressor includes an internal condenser tube that stores water condensed from hot vapor. On startup, a solenoid valve controls high-speed airflow to atomize and spray the condensed water out of the condenser tube. On shutdown, the solenoid valve uses high-speed airflow to blow moisture from the riser tube, reducing moisture ingress to the molecular sieve tower and improving oxygen production efficiency and molecular sieve lifetime.
Porous muffler hose function
The porous hose is mounted in the inlet muffler box and the denitrogenation muffler box. When higher-noise airflow passes through the small holes of the hose, acoustic energy is largely converted to mechanical energy, thereby reducing compressor noise and noise during denitrogenation.
Ordering Informations
Catalogue No.: Y9
Technical Parameters
Product dimension: 420x210x509 mm
Net weight: About 12 kg
Flow range: 1-9 L/min adjustable
Maximum outlet pressure: 40±10% kPa
Electrical classification: Class Ⅱ Type B
Running noise: ＜ 51 dB（A）
Oxygen concentration: 93%±3% (percent by volume at 3 L/min)
Nominal voltage: AC 220V 50Hz
Input power: 250 VA
Characteristics / Technical specifications
- Product dimension: 420x210x509 mm
- Net weight: About 12 kg
- Flow range: 1-9 L/min adjustable
- Maximum outlet pressure: 40±10% kPa
- Electrical classification: Class Ⅱ Type B
- Running noise: ＜ 51 dB（A）
- Oxygen concentration: 93%±3% (percent by volume at 3 L/min)
- Nominal voltage: AC 220V 50Hz
- Input power: 250 VA
