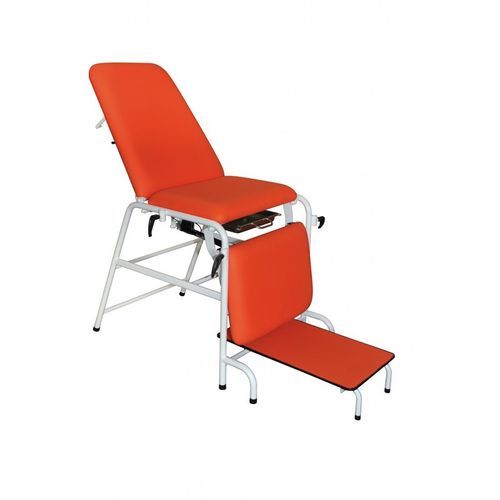

Gynecological examination table Gynecological table - fixed height
Trendelenburgfixed-heightwith adjustable backrest

Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest
Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest
Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest - image - 2
Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest - image - 3
Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest - image - 4
Gynecological examination table - Gynecological table - fixed height - VOG MEDICAL - Trendelenburg / fixed-height / with adjustable backrest - image - 5
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
gynecological
Features
Trendelenburg, fixed-height, with adjustable backrest
Number of sections
3-section
Color
white
Weight capacity

220 kg
(485 lb)

Length

173 cm
(68.1 in)

Width

82 cm
(32.3 in)

Height

86 cm
(33.86 in)

Description

FEATURES:
  • 3-section gynecological table with fixed working height designed for examinations and minor procedures.
  • Backrest adjustable by bilateral gas spring for smooth, controlled positioning.
  • Leg rest adjustable by gas spring.
  • Frame tube diameter: 30 mm.
  • Backrest, underside of seat and underside of leg rest in white ABS for easy cleaning.
  • Includes stainless steel bowl and roll holder mounted on the backrest.
  • Stretch upholstery; foam density 28 kg/m3 for consistent support.


DIMENSIONS:
  • Overall dimensions: L. 1730 × W. 820 × H. 860 mm.
  • Backrest: L. 720 × W. 600 mm.
  • Seat: L. 450 × W. 600 mm.
  • Leg rest: L. 450 × W. 600 mm.
  • Weight of the chair: 45 kg.
  • Weight capacity: 220 kg.
  • Warranty: 4 years excluding upholstery.


OPTIONS:
  • Pair of stainless steel stirrups (1991/0).
  • Pair of polyurethane foam stirrups (1991/2).
  • Pair of PU calipers with ball joint system (BALL JOINTS/PU).
  • Crystal clear PVC seat protector (PROTEC).
  • Crystal clear PVC leg protector (PROTEC/JAMB).
  • Adjustable seat — Trendelenburg position -5°/+12° (2006/2).
  • Retractable step (3096/1).
  • Cutout on the seat (CUTOUT/3 PLANES).


PRODUCT IDENTIFIERS:
Reference: 2006/1
EAN13: 3760315451412

CHARACTERISTICS / TECHNICAL SPECIFICATIONS:
  • Product type: Gynecological table, fixed height, 3-section design.
  • Reference / SKU: 2006/1.
  • EAN13: 3760315451412.
  • Backrest: adjustable by bilateral gas spring.
  • Leg rest: adjustable by gas spring.
  • Frame tube diameter: 30 mm.
  • Backrest, underside of seat and leg rest: white ABS components.
  • Includes stainless steel bowl and roll holder on backrest.
  • Covering: stretched upholstery; foam density 28 kg/m3.
  • Overall dimensions: 1730 × 820 × 860 mm.
  • Backrest: 720 × 600 mm; Seat: 450 × 600 mm; Leg rest: 450 × 600 mm.
  • Chair weight: 45 kg. Load capacity: 220 kg.
  • Warranty: 4 years (upholstery excluded).
  • Available optional accessories: stainless steel stirrups, polyurethane foam stirrups, PU calipers with ball joints, PVC protectors, adjustable seat (Trendelenburg), retractable step, seat cutout.
