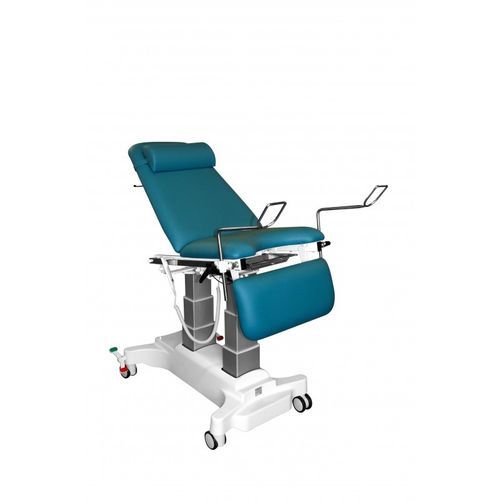

Gynecological examination chair LE QUESNOYfoot-operatedelectricmanual
Add to favorites
Compare this product
Characteristics
- Applications
- gynecological
- Operation
- foot-operated, electric, manual
- Features
- with adjustable backrest, on casters, tilting, Trendelenburg, reclining, height-adjustable, with legrest
- Number of sections
- 3-section
- Weight capacity
300 kg
(661 lb)- Weight
90 kg
(198 lb)- Seat height
Max.: 1,020 mm
(40.2 in)Min.: 620 mm
(24.4 in)- Height
Max.: 1,020 mm
(40.2 in)Min.: 620 mm
(24.4 in)- Width
800 mm
(31.5 in)- Length
1,750 mm
(68.9 in)
Description
FEATURES:
DIMENSIONS:
OPTIONS:
DIFFERENT MODELS:
TECHNICAL SPECIFICATIONS:
- Three-part gynecological chair with proclive/declive adjustment.
- Height adjustment by two electric columns, range 620–1020 mm.
- Flat saddle design; seat width 600 mm.
- Leg rest adjustable by gas spring; head cushion included.
- Equipped with a pair of stirrup sockets; choice of PU foam leg supports or stainless steel stirrups.
- Stainless steel bowl included; roll holder on backrest.
- Manual control standard; optional 4-button or 6-button foot controls; optional Bluetooth motorization (wireless hand control).
- Seat and backrest foam density 28 kg/m3.
- Electrical classification: Class II motor.
DIMENSIONS:
- Overall: L 1750 × W 800 × H 620/1020 mm.
- Backrest: L 820 × W 600 mm.
- Seat: L 450 × W 600 mm.
- Leg rest: L 280 × W 600 mm.
- Chair weight: 90 kg.
- Maximum load capacity: 300 kg.
- Warranty: 4 years (excluding upholstery).
OPTIONS:
- Pair of PU calipers with ball joint system (BALL JOINTS/PU).
- Crystal clear PVC seat protector (PROTEC).
- Crystal clear PVC leg protector (PROTEC/JAMB).
- Chrome socket and slide for IV pole (2050/D).
- IV pole, 2 hooks (2050/80).
- Cutout on the sofa seat (CUTOUT/3 PLANES).
- 4-button foot control for 3850/0 & 3860/0 (CDEPIEDGYNECO1).
- 6-button foot control for 3800/0 & 3810/0 (CDEPIEDGYNECO2).
- Bluetooth motorization (wireless manual control) (CDEMAN/BLUETOOTH).
DIFFERENT MODELS:
- Available with central locking of the Ø100 mm casters.
- Ref. 3810/0 — Motors enabling seat height adjustment, backrest tilt and Trendelenburg position.
- Ref. 3860/0 — Motors for seat height adjustment and Trendelenburg position; backrest adjustable by gas spring.
TECHNICAL SPECIFICATIONS:
- Commercial name: LE QUESNOY.
- References: 3810/0 and 3860/0.
- Seat width: 600 mm.
- Height adjustment: two electric columns, 620–1020 mm.
- Seat and backrest foam density: 28 kg/m3.
- Chair net weight: 90 kg.
- Maximum load: 300 kg.
- Warranty: 4 years (upholstery excluded).
- Leg rest: gas-spring adjustable; flat saddle.
- Includes stirrup sockets (PU foam leg supports or stainless steel stirrups).
- Includes stainless steel bowl; roll holder on backrest.
- Control: manual standard; optional foot controls and Bluetooth motorization.
- Electrical class: II.
