Adult examination table Divan Caix
electricheight-adjustablelifting

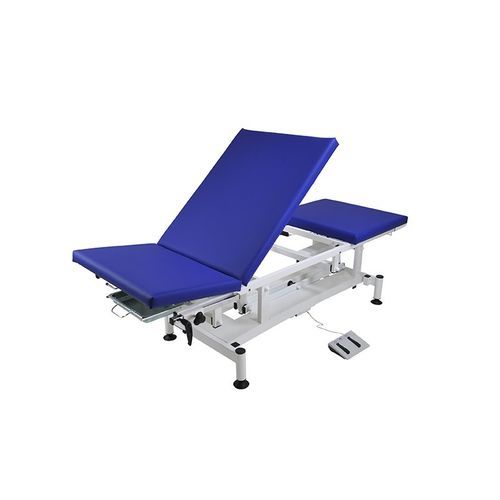

Adult examination table - Divan Caix - VOG MEDICAL - electric / height-adjustable / lifting
Adult examination table - Divan Caix - VOG MEDICAL - electric / height-adjustable / lifting
Adult examination table - Divan Caix - VOG MEDICAL - electric / height-adjustable / lifting - image - 2
Adult examination table - Divan Caix - VOG MEDICAL - electric / height-adjustable / lifting - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Patient type
adult
Operation
electric
Features
height-adjustable, lifting, with adjustable backrest
Number of sections
3-section
Color
white
Weight capacity

Min.: 220 kg
(485 lb)

Max.: 220 kg
(485 lb)

Length

Min.: 200 cm
(78.7 in)

Max.: 200 cm
(78.7 in)

Width

Min.: 80 cm
(31.5 in)

Max.: 80 cm
(31.5 in)

Height

Min.: 53 cm
(20.87 in)

Max.: 93 cm
(36.61 in)

Mattress thickness

Min.: 4 cm
(1.6 in)

Max.: 4 cm
(1.6 in)

Description

FEATURES:
  • Electric table with height adjustment from 530 to 930 mm.
  • Rearward movement of 200 mm.
  • Frame in white epoxy rectangular tubing.
  • Protective cover at the base.
  • 4 adjustable black polyamide glides.
  • Stitched upholstery, 40 mm thickness.
  • Backrest adjustable by gas spring.
  • Central section adjustable by gas spring, manual cable control (left or right, to be specified).
  • Liftable seat, manual adjustment.
  • Stainless steel bowl.
  • Roll holder for backrest and central section.
  • Foot control.
  • Sliding sockets for calipers.
  • Seat and backrest foam density: 28 kg/m3.
  • Class II motor.


DIMENSIONS:
  • Overall: L. 2000 × W. 800 × H. 530/930 mm.
  • Head section: L. 600 × W. 800 mm.
  • Central section: L. 850 × W. 800 mm.
  • Seat: L. 440 × W. 800 mm.
  • Product weight (description): 90 kg.
  • Load capacity: 220 kg.
  • Warranty: 4 years (upholstery excluded).


OPTIONS:
  • Face hole (LIGHT).
  • Folding barriers (2160/B).
  • Protective cover for barriers (2161/B).
  • Retractable casters (ROUL/ESCA).
  • Set of 4 casters Ø100 mm with brakes (modified max/min height) (2160/R).
  • Set of 4 double-wheel casters Ø75 mm with brake (modified max/min height) (2180/R).
  • Set of 4 double-wheel casters Ø100 mm with brake (modified max/min height) (2190/R).
  • Pair of black polyurethane foam stirrups (1991/2).
  • Pair of stainless steel stirrups (1991/0).
  • Pair of PU calipers with ball joint system (BALL JOINTS/PU).
  • Peripheral height adjustment control (PERIPH).
  • Electric backrest (manual control) (BACK/ELEC).
  • Electric backrest (foot control) (BACK/ELECP).
  • Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0).
  • Chrome socket and slide for IV pole (2050/D).
  • IV pole, 2 hooks (2050/80).
  • Semi-cylindrical cushion, 700 mm wide (for 800 mm sofa) (4160/2).
  • Crystal clear PVC protection for the central section (PROTEC).
  • Clear crystal PVC protection – 3rd part (PROTEC/3EMEPARTIE).
  • Crystal clear PVC cover – entire sofa (Velcro fastening) (PROTECTOTAL/VELCRO).
  • Crystal clear PVC protection – entire sofa (stapled to the upholstery) (TOTAL PROTECTION/STAPLT).
  • Rails + sliding sockets (pair) for IV pole/armrest (2160/RAIL).
  • Pair of PU gutters – height and tilt adjustable (3053/G).
  • Manual 2-button control (instead of foot control) (CDEMANCAIX).
  • Bluetooth motorization (wireless foot control) (FOOT CONTROL/BLUETOOTH).


TECHNICAL SPECIFICATIONS:
  • Reference / SKU: 1111/2107/80.
  • EAN-13: 3760315452068.
  • Declared product weight (meta): 63.000000 kg.
  • Product weight (description): 90 kg.
  • Load capacity: 220 kg.
  • Upholstery foam density (seat & backrest): 28 kg/m3.
  • Upholstery thickness: 40 mm (stitched).
  • Height adjustment range: 530–930 mm (electric).
  • Rearward movement: 200 mm.
  • Frame: white epoxy rectangular tubing.
  • Motor classification: Class II.
  • Warranty: 4 years (excluding upholstery).
