General examination couch Licata
adultelectricheight-adjustable

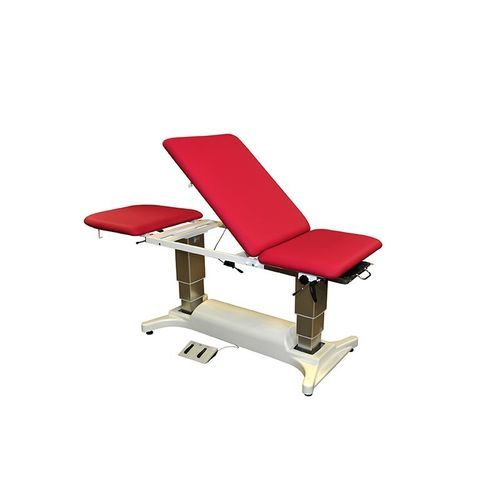

General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable - image - 2
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
general
Patient type
adult
Operation
electric
Features
height-adjustable, with adjustable backrest
Number of sections
3-section
Color
red
Weight capacity

300 kg
(661.4 lb)

Length

200 cm
(78.7 in)

Width

80 cm
(31.5 in)

Height

Max.: 94 cm
(37.01 in)

Min.: 54 cm
(21.26 in)

Mattress thickness

4 cm
(1.6 in)

Description

FEATURES:
  • Height adjustable from 540 to 940 mm
  • Frame made of epoxy square tubing
  • Equipped with 4 adjustable black polyamide glides
  • Flat upholstery, 40 mm thick
  • Backrest adjustable +75° / -15° via gas spring (bilateral control)
  • Central section adjustable by gas spring; liftable seat (manual)
  • Sliding stainless steel toilet bowl
  • Pair of sliding caliper sockets
  • Underside of seat and backrest in white ABS cover
  • Roll holder (backrest and central part)
  • Seat and backrest foam density 38 kg/m3
  • Foot control (standard)
  • Class II engine


DIMENSIONS:
  • Overall dimensions: L. 2000 × W. 800 × H. 540/940 mm
  • Backrest dimensions: L. 650 × W. 800 mm
  • Central part: L. 850 × W. 800 mm
  • Seat: L. 450 × W. 800 mm
  • Weight: 90 kg
  • Load capacity: 300 kg
  • Warranty: 4 years (excluding upholstery)


OPTIONS:
  • Set of 4 casters (Ø 100 mm) with central locking (modified max/min height) (2170/R)
  • Set of 4 casters (Ø 100 mm with brakes) (modified max/min height) (2160/R)
  • Set of 4 double-wheel casters (Ø 75 mm with brake) (modified max/min height) (2180/R)
  • Set of 4 double-wheel casters (Ø 100 mm with brake) (modified max/min height) (2190/R)
  • Face hole in backrest (LIGHT)
  • Folding barriers (2160/B)
  • Protective cover for barriers (pair) (2161/B)
  • Pair of stainless steel stirrups (1991/0)
  • Pair of polyurethane foam stirrups (1991/2)
  • Pair of PU leg rests with ball joint system (BALL JOINTS/PU)
  • Chrome socket and slide for IV pole (2050/D)
  • IV pole with 2 hooks (2050/80)
  • Electric backrest (manual control) (DOS/ELEC)
  • Electric backrest (foot control) (DOS/ELECP)
  • Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0)
  • Semi-cylindrical cushion, 700 mm wide (for 800 mm sofa) (4160/2)
  • Crystal clear PVC protection for central section (PROTEC)
  • Clear crystal PVC protection – 3rd part (PROTEC/3EMEPARTIE)
  • Crystal clear PVC cover – entire sofa (Velcro fastening) (PROTECTOTAL/VELCRO)
  • Crystal clear PVC protection – entire sofa (stapled to the upholstery) (TOTAL PROTECTION/STAPLT)
  • Rails + sliding sockets (pair) for IV pole/armrest (2160/RAIL)
  • Pair of PU gutters – height and tilt adjustable (3053/G)
  • Manual 2-button control (instead of foot control) (CDEMANLICATA)
  • Cutout on the sofa seat (CUTOUT/3 PLANES)
  • Bluetooth motorization (wireless foot control) (FOOT CONTROL/BLUETOOTH)


Technical characteristics / specifications:
  • Reference (SKU): 2129/80/C
  • EAN-13: 3760315451825
  • Model / Series: Licata
  • Overall dimensions (L×W×H): 2000 × 800 × 540/940 mm
  • Adjustable height range: 540–940 mm
  • Frame: epoxy square tubing
  • Upholstery: flat, 40 mm thickness
  • Foam density (seat & backrest): 38 kg/m3
  • Backrest adjustment: +75° / -15° via gas spring (bilateral control)
  • Central section: gas spring adjustable; liftable seat (manual)
  • Underside: white ABS cover (seat and backrest)
  • Glides / Castors: 4 adjustable black polyamide glides (optional caster sets available)
  • Toilet bowl: sliding stainless steel
  • Controls: foot control (other control options available)
  • Engine classification: Class II
  • Weight: 90 kg
  • Maximum load capacity: 300 kg
  • Warranty: 4 years (excluding upholstery)
