General examination couch Licata
adultelectricheight-adjustable

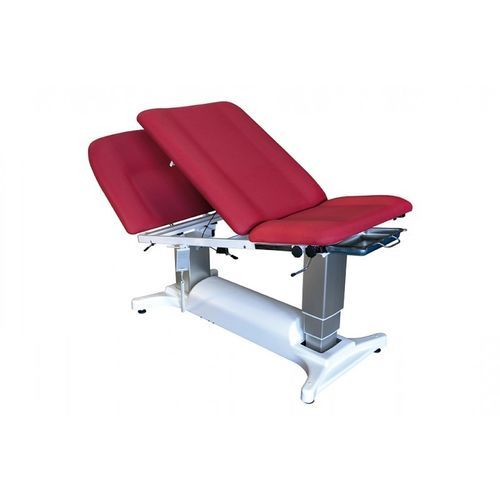

General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable - image - 2
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
general
Patient type
adult
Operation
electric
Features
height-adjustable, with adjustable backrest, reclining
Number of sections
3-section
Color
red
Weight capacity

300 kg
(661.4 lb)

Length

200 cm
(78.7 in)

Width

67 cm
(26.4 in)

Height

Max.: 102 cm
(40.16 in)

Min.: 62 cm
(24.41 in)

Mattress thickness

5 cm
(2 in)

Description

FEATURES:
  • Height adjustable from 620 to 1020 mm with proclive/declive adjustment (+11°/‑11°) for ergonomic positioning.
  • Frame constructed from epoxy-coated square tubing for durability and easy cleaning.
  • Equipped with four adjustable black polyamide glides for stable floor contact.
  • Stretched upholstery with 50 mm thick side bolsters for patient support.
  • Backrest inclination +75°/‑15° adjusted by gas spring with bilateral control.
  • Central section adjustable by gas spring; seat is manually liftable.
  • Integrated sliding stainless steel toilet bowl for clinical procedures.
  • Includes one pair of sliding caliper sockets; underside of seat and backrest finished in white ABS.
  • Roll paper holder on backrest and central section.
  • Seat and backrest foam density: 38 kg/m3.
  • Class II motor (electrical), manual control as standard; multiple motorization options available.
  • Manual control version available; warranty: 4 years excluding upholstery.


DIMENSIONS:
  • Overall dimensions: L 2000 × W 670 × H 620–1020 mm.
  • Backrest: L 650 × W 670 mm.
  • Central section: L 850 × W 670 mm.
  • Seat: L 450 × W 670 mm.
  • Weight: 80 kg.
  • Maximum load capacity: 300 kg.


OPTIONS:
  • Set of 4 casters Ø 100 mm with central locking (modifies max/min height) (2170/R).
  • Set of 4 casters Ø 100 mm with brakes (modifies max/min height) (2160/R).
  • Set of 4 double-wheel casters Ø 75 mm with brake (modifies max/min height) (2180/R).
  • Set of 4 double-wheel casters Ø 100 mm with brake (modifies max/min height) (2190/R).
  • Face hole in backrest (LIGHT).
  • Folding side barriers (2160/B) and protective covers for barriers (pair) (2161/B).
  • Pair of stainless steel calipers (1991/0) or polyurethane foam stirrups (1991/2).
  • Pair of PU calipers with ball joint system (BALL JOINTS/PU).
  • Chrome socket and slide for IV pole (2050/D); IV pole with 2 hooks (2050/80).
  • Electric backrest options: manual or foot control (DOS/ELEC, DOS/ELECP).
  • Self-contained battery (up to 24 hours after charging / 50 cycles) (3515/0).
  • Semi-cylindrical cushion 600 mm wide for 670 mm couch (4160/1).
  • Crystal-clear PVC protection covers (sectional and full) and rails + sliding sockets for IV pole/armrest (2160/RAIL).
  • Pair of PU gutters – height and tilt adjustable (3053/G).
  • 4-button foot control replacing manual control (CDEPIEDLICATA).
  • Seat cutout options (CUTOUT/3 PLANES) and Bluetooth motorization (wireless manual control) (CDEMAN/BLUETOOTH).


TECHNICAL SPECIFICATIONS:
  • Reference (SKU): 2137/C
  • EAN: 3760315451856
  • Weight: 80 kg
  • Maximum load capacity: 300 kg
  • Height adjustment range: 620–1020 mm
  • Overall dimensions (L × W × H): 2000 × 670 × 620/1020 mm
  • Seat/backrest foam density: 38 kg/m3
  • Upholstery: stretched, 50 mm side bolsters
  • Frame: epoxy square tubing
  • Underside finish: white ABS cover
  • Backrest adjustment: gas spring +75°/‑15° (bilateral)
  • Central section: gas-spring assisted, manually liftable
  • Integrated sliding stainless steel toilet bowl and roll holders on backrest and central part
  • Electrical: Class II motor (manual control standard; motorization options available)
  • Warranty: 4 years (upholstery excluded)
