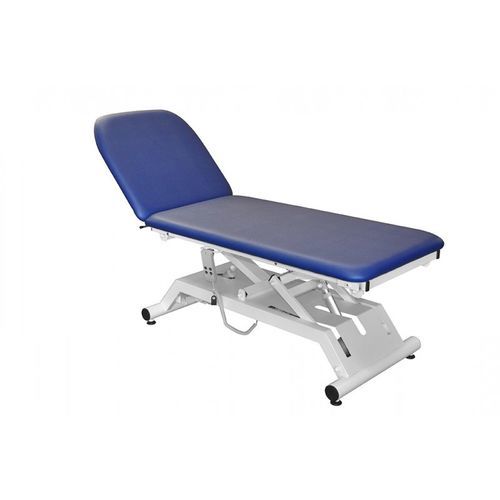

General examination couch Vimeuelectricheight-adjustablereclining
Add to favorites
Compare this product
Characteristics
- Applications
- general
- Operation
- electric
- Features
- height-adjustable, with adjustable backrest, reclining, tilting
- Number of sections
- 2-section
- Color
- blue
- Weight capacity
300 kg
(661.4 lb)- Length
200 cm
(78.7 in)- Width
80 cm
(31.5 in)- Height
Max.: 84 cm
(33.07 in)Min.: 54 cm
(21.26 in)- Mattress thickness
4 cm
(1.6 in)
Description
REFERENCE
REFERENCE: 2502/80
FEATURES
DIMENSIONS
OPTIONS
NOTES
TECHNICAL SPECIFICATIONS
REFERENCE: 2502/80
FEATURES
- Electrically assisted table lift with manual backrest control
- Forward displacement: 200 mm
- Frame: white epoxy rectangular tubing
- Flat seat padding: 40 mm thickness
- Equipped with 4 adjustable black polyamide glides
- Whole-couch tilt: +11° / -11°
- White ABS cover under seat and backrest
- Backrest adjustable by gas spring, proclive/declive +65° / -25° with bilateral control
- Roll holder mounted on backrest
- Seat and backrest foam density: 38 kg/m3
- Class II engine (medical electrical classification)
DIMENSIONS
- Overall: L 2000 × W 800 × H 540/840 mm
- Backrest (file): L 650 × W 800 mm
- Seat: L 1300 × W 800 mm
- Weight: 90 kg
- Maximum load capacity: 300 kg
- Warranty: 4 years (excluding upholstery)
OPTIONS
- Face hole (LIGHT)
- Folding side barriers (2160/B)
- Protective cover for barriers (2161/B)
- Set of 4 castors Ø100 mm with brakes (modified max/min height) (2160/R)
- Set of 4 double-wheel castors Ø75 mm with brakes (modified max/min height) (2180/R)
- Set of 4 double-wheel castors Ø100 mm with brakes (2190/R)
- Pair of sliding caliper bushings (2106/12DE)
- Pair of black polyurethane foam stirrups (1991/2)
- Pair of stainless steel stirrups (1991/0)
- Pair of PU legrests with ball joint system (BALL JOINTS/PU)
- Electric backrest (manual control) (DOS/ELEC)
- Electric backrest (foot control) (DOS/ELECP)
- Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0)
- Chrome socket + slide for IV pole (2050/D)
- IV pole with 2 hooks (2050/80)
- Semi-cylindrical cushion 700 mm wide for 800 mm couch (4160/2)
- Transparent PVC foot protection (PROTEC)
- Transparent PVC full-cover (Velcro) (PROTECTOTAL/VELCRO)
- Transparent PVC full-cover (stapled) (PROTECTOTAL/AGRAF)
- Rails + sliding sockets (pair) for IV pole / armrest (2160/RAIL)
- Pair of PU gutters adjustable in height and tilt (3053/G)
- 4-button foot control (instead of manual control) (CDEPIEDVIMEU)
- Anatomical upholstery - 80 cm wide (SELLANA/80)
- Bluetooth motorization (wireless manual control) (CDEMAN/BLUETOOTH)
NOTES
- Availability on page: Out of stock
- Short product note shown on modal: REFERENCE: 2502/80
TECHNICAL SPECIFICATIONS
- Reference / SKU: 2502/80
- EAN13: 3760315452020
- Overall dimensions: 2000 × 800 × 540/840 mm
- Seat dimensions: 1300 × 800 mm
- Backrest (file) dimensions: 650 × 800 mm
- Weight (page specification): 90 kg
- Product metadata weight (og): 63 kg
- Maximum load capacity: 300 kg
- Foam density (seat & backrest): 38 kg/m3
- Frame: white epoxy rectangular tubing
- Under-seat/backrest cover: white ABS
- Backrest adjustment: gas spring, +65° / -25° (bilateral control)
- Couch tilt/incline: +11° / -11°
- Forward displacement: 200 mm
- Glides: 4 adjustable black polyamide glides
- Control: manual backrest control; electric lift for table; optional foot or wireless controls available
- Engine class: Class II
- Warranty: 4 years (excluding upholstery)
