Cardiology examination table Licata
with adjustable backrestfixed-height2 sections

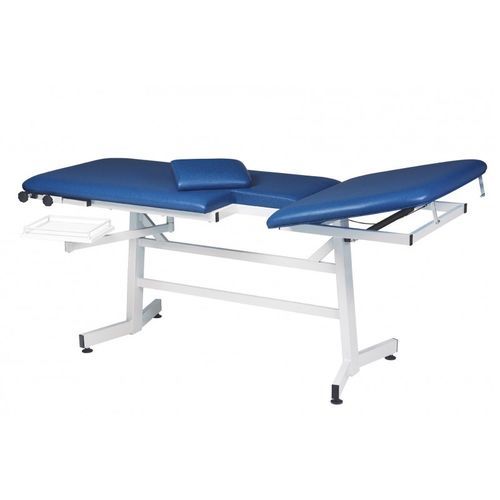

Cardiology examination table - Licata - VOG MEDICAL - with adjustable backrest / fixed-height / 2 sections
Cardiology examination table - Licata - VOG MEDICAL - with adjustable backrest / fixed-height / 2 sections
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
cardiology
Features
with adjustable backrest, fixed-height
Number of sections
2 sections
Color
white
Weight capacity

200 kg
(440.9 lb)

Length

200 cm
(78.7 in)

Width

67 cm
(26.4 in)

Height

80 cm
(31.5 in)

Mattress thickness

5 cm
(2 in)

Description

KEY FEATURES:
  • Fixed examination couch designed for cardiology and general procedures.
  • Frame in white epoxy square tubing for easy cleaning.
  • Equipped with 4 adjustable black polyamide glides.
  • Upholstery stretched, 50 mm thickness; seat and backrest foam density 38 kg/m3.
  • Backrest adjustable by gas spring for controlled positioning.
  • Underside of seat and backrest protected by white ABS cover.
  • Integrated roll holder on the backrest.
  • Cutout on the top of the seat for ultrasound scans with removable closure plug.


DIMENSIONS:
  • Overall dimensions: L 2000 × W 670 × H 800 mm.
  • Backrest (file) dimensions: L 650 × W 670 mm.
  • Seat dimensions: L 1300 × W 670 mm.
  • Seat width: 670 mm.
  • Weight: 40 kg.
  • Maximum load capacity: 200 kg.
  • Warranty: 4 years (upholstery excluded).


OPTIONS:
  • Set of 4 casters (Ø 100 mm with brakes). (2160/R)
  • Set of 4 double-wheel casters (Ø 75 mm with brake). (2180/R)
  • Set of 4 double-wheel casters (Ø 100 mm with brake). (2190/R)
  • Face hole in backrest. (LIGHT)
  • Folding barriers. (2160/B)
  • Protective cover for the side rail (pair). (2161/B)
  • Chrome socket + slide for IV pole. (2050/D)
  • IV pole with 2 simple hooks. (2050/80)
  • Semi-cylindrical cushion, 600 mm wide (for 670 mm couch). (4160/1)
  • Crystal clear PVC protection for the patient's feet. (PROTEC)
  • Crystal clear PVC cover – full couch (Velcro fastening). (PROTECTOTAL/VELCRO)
  • Crystal clear PVC protection – full couch (stapled to the upholstery). (TOTAL PROTECTION/STAPLT)
  • Rails + sliding sockets (pair) for IV pole/armrest. (2160/RAIL)
  • Pair of PU gutters – height and tilt adjustable. (3053/G)


TECHNICAL SPECIFICATIONS:
  • Reference (SKU): 2206/12V.
  • EAN-13: 3760315451580.
  • Denomination / Series: Licata.
  • Overall dimensions (L×W×H): 2000 × 670 × 800 mm.
  • Seat dimensions: 1300 × 670 mm.
  • Backrest dimensions: 650 × 670 mm.
  • Upholstery thickness: 50 mm.
  • Seat and backrest foam density: 38 kg/m3.
  • Frame: white epoxy square tubing.
  • Underside: white ABS cover for seat and backrest.
  • Backrest: adjustable by gas spring.
  • Roll holder located on the backrest.
  • Ultrasound scan cutout on seat with removable closure plug.
  • Adjustable black polyamide glides (4).
  • Weight (declared): 40 kg.
  • Product meta weight: 25.000000 kg.
  • Maximum load / Weight capacity: 200 kg.
  • Warranty: 4 years (excluding upholstery).
