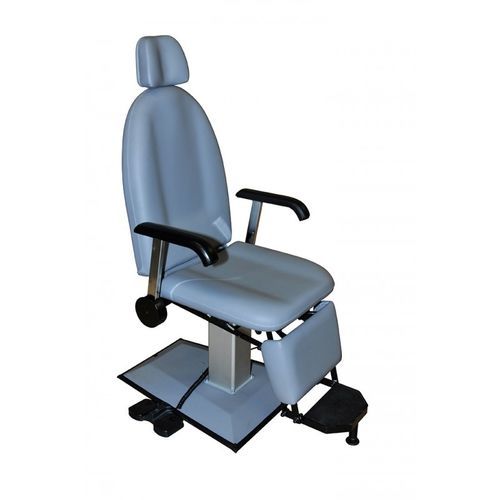

ENT examination chair CCA

electricwith legrestheight-adjustable

REFERENCE: CCA2512

KEY FEATURES:

• Four-part consultation chair designed for ENT examinations
• Trapezoidal base covered in PVC matching the upholstery
• Electric height adjustment via single column 600–800 mm (no swivel system)
• 60 mm stretched upholstery; foam density 38 kg/m3
• Synchronized adjustment: backrest -5° to +85°, leg rest 0° to +80° via gas spring
• Retractable armrests and foot control
• Actuator Class II; load capacity 220 kg
• Chair weight 60 kg; declared product weight 75 kg; warranty 4 years (excluding upholstery)

DIMENSIONS:
- Overall: L 1810 × W 810 × H 600/800 mm.
- Backrest: H 650 × W 480 mm.
- Seat: D 470 × W 460 mm.
- Leg rest: H 230 × W 370 mm.
- Headboard: H 165 × W 200 mm.
- Weight capacity: 220 kg.
- Weight: 60 kg.

OPTIONS:

• Rotating system (adds 100 mm height) (3521/0)
• Adjustable swiveling headrest with earcups (Ø 9 cm) (603/0)
• Crystal-clear PVC seat protector (PROTEC)
• Crystal-clear PVC leg protector (PROTEC/JAMB)
• Roll holder (2009/0)

TECHNICAL SPECIFICATIONS:

• Model: CCA
• Reference / SKU: CCA2512
• EAN13: 3760315451368
• Product type: ENT consultation chair, 4-part
• Height adjustment: electric column 600–800 mm (no swivel)
• Base: trapezoidal base, PVC-covered
• Upholstery thickness: 60 mm (stretched)
• Foam density: 38 kg/m3
• Backrest range: -5° to +85° (synchronized)
• Leg rest range: 0° to +80° (synchronized)
• Headboard size: 165 × 200 mm
• Seat dimensions: depth 470 × width 460 mm
• Backrest dimensions: height 650 × width 480 mm
• Leg rest dimensions: height 230 × width 370 mm
• Weight of the chair: 60 kg (declared 75 kg)
• Load capacity: 220 kg
• Control: foot control
• Armrests: retractable
• Actuator / Engine: Class II
• Warranty: 4 years excluding upholstery
