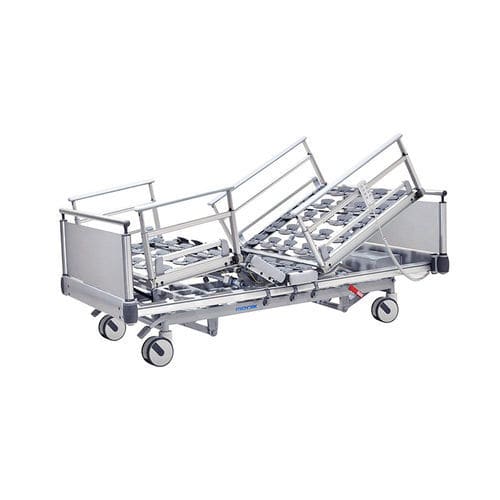

Nursing home bed YA-DH8-1
hospitalelectricfolding

Nursing home bed - YA-DH8-1 - Zhangjiagang Medi Medical Equipment - hospital / electric / folding

Nursing home bed - YA-DH8-1 - Zhangjiagang Medi Medical Equipment - hospital / electric / folding - image - 2

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

nursing home, hospital

Operation

electric

Features

folding, Trendelenburg, inclinable, reverse Trendelenburg, reclining, height-adjustable

Component

on casters

Height

Max.: 780 mm
(30.71 in)

Min.: 420 mm
(16.54 in)

Width

98.5 cm
(38.8 in)

Length

220 cm
(86.6 in)

Weight capacity

250 kg
(551.2 lb)

Description

Product overview
YA-DH8-1 is an electric nursing bed designed for clinical and long-term care environments. The aluminum casting frame supports repeated disinfection and long service life. The butterfly pressure-relief sleeping platform distributes body pressure evenly to reduce pressure points.

Main features

Whole aluminum alloy frame (aluminum casting)
Telescopic aluminum side rails: foldable and can slide under the platform
Butterfly sleeping platform for even pressure distribution
Manual CPR lever located on both sides of the bed
Bumper protectors at four corners
Central brake system with Ø150 mm castors
Anti-slide device to prevent patient sliding toward the foot end
Handheld remote with railing holder
Detachable headboard and footboard with easy lock
Optional mechanical bed extension (approx. 150 mm)
Optional auto-regress to reduce abdominal pressure when adjusting the backrest
Optional retractable 5th wheel for directional control

Functions

Backrest adjustment
Footrest adjustment
Height adjustment (high-low)
Trendelenburg
Reverse-Trendelenburg

Certification / Warranty / Service
Certificate: CE / ISO
Warranty: 5 years on frame and welds, 1 year on parts
After-sale service: online technical support

Technical parameters
Model: YA-DH8-1
Overall size: 2200 × 985 × 420–780 mm
Height adjustment: 420–780 mm
Backrest angle: 0–75°
Footrest angle: 0–45°
Trendelenburg / Reverse-Trendelenburg: 0–12°
Maximum loading capacity: 250 kg
Castors: Ø150 mm with central brake system
Recommended mattress size: 1900 × 900 mm
Bed extension: 150 mm (optional)

Characteristics / Specifications

Model: YA-DH8-1
Frame material: Whole aluminum alloy (aluminum casting)
Sleeping platform: Butterfly platform for even pressure distribution
Overall dimensions: 2200 × 985 × 420–780 mm
Height adjustment range: 420–780 mm
Backrest angle: 0–75°
Footrest angle: 0–45°
Trendelenburg / Reverse-Trendelenburg: 0–12°
Maximum loading capacity: 250 kg
Castors: Ø150 mm with central brake system
Safety/operation features: manual CPR lever both sides, anti-slide device, handheld remote with railing holder, detachable head/footboard
Optional features: mechanical bed extension (~150 mm), auto-regress for abdominal pressure relief, retractable 5th wheel
Certificate: CE / ISO
Warranty: 5 years on frame and welds, 1 year on parts
