Hospital bed
Zhangjiagang Medi Medical Equipment

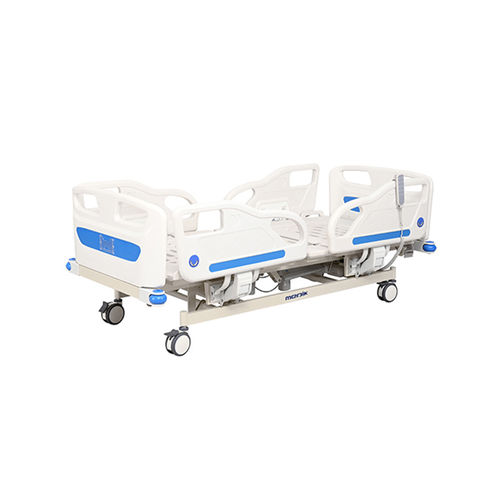

Hospital bed YA-D5-5
electricrecliningreverse Trendelenburg

Hospital bed - YA-D5-5 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg

Hospital bed - YA-D5-5 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg

Hospital bed - YA-D5-5 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 2

Hospital bed - YA-D5-5 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 3

Hospital bed - YA-D5-5 - Zhangjiagang Medi Medical Equipment - electric / reclining / reverse Trendelenburg - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

hospital

Operation

electric

Features

reclining, reverse Trendelenburg, Trendelenburg, height-adjustable

Component

on casters

Options

washable

Number of sections

5-section

Height

Max.: 800 mm
(31.5 in)

Min.: 510 mm
(20.08 in)

Width

106 cm
(41.7 in)

Length

220 cm
(86.6 in)

Weight capacity

225 kg
(496 lb)

Description

Product Overview
Model: YA-D5-5
Overall Size: 2200×1060×510-800 mm
Safe Working Load: 225 kg
Functions: Adjustable backrest, adjustable footrest, height adjustment, Trendelenburg and reverse-Trendelenburg positions
Certificate: ISO/CE
Color options: Green, Blue, Yellow
Motor: Jiechang motor (Linak, Timotion, Dewert optional)
Warranty: 3-year on frame and welds; 1-year on parts
After-sale service: Online technical support
Customization: Available

Main features

Frame treated by electrophoresis and powder coating for corrosion resistance
ABS bed platform for easy cleaning and hygiene
Quiet, robust electric actuators for reliable operation
Handheld remote control for all electrically operated functions
Four split side rails that fold down under the bed platform
Detachable head and foot boards with quick-lock mechanism
Central-brake castors, Ø125 mm
Anti-slide auto-counter to reduce patient migration toward the foot end
Manual CPR release on both sides (optional)
Embedded angle indicators on rails for backrest and Trendelenburg adjustments

Technical parameter
Model: YA-D5-5
Size: 2200×1060×510 mm (height adjustable 510–800 mm)
Lying surface: 1960×900 mm
Height range: 510–800 mm
Backrest angle: 0°–75°
Knee section angle: 0°–40°
Trendelenburg: 0°–12°
Reverse Trendelenburg: 0°–12°
Safe working load: 225 kg

Characteristics / Technical specifications

Model: YA-D5-5
Overall size: 2200×1060×510–800 mm
Lying surface: 1960×900 mm
Height range: 510–800 mm
Back section: 0°–75°
Knee section: 0°–40°
Trendelenburg/Reverse: 0°–12°
Safe working load: 225 kg
Materials: ABS bed platform; frame with electrophoresis and powder coating
Motor options: Jiechang standard; Linak, Timotion, Dewert optional
Castors: central-brake, Ø125 mm
Warranty: 3 years on frame and welds; 1 year on parts
