Hospital bed
Zhangjiagang Medi Medical Equipment

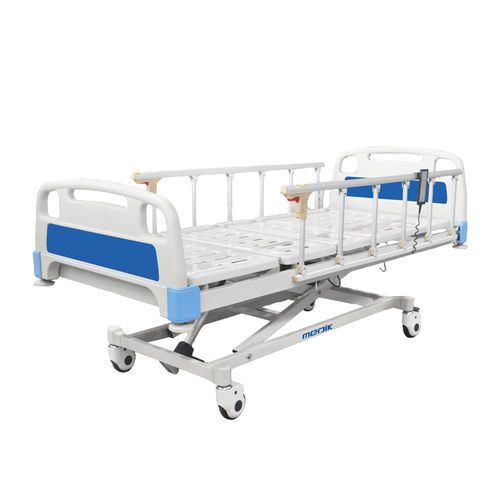

Hospital bed YA-D3-4
electricheight-adjustableultra-low

Hospital bed - YA-D3-4 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / ultra-low

Hospital bed - YA-D3-4 - Zhangjiagang Medi Medical Equipment - electric / height-adjustable / ultra-low

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

hospital

Operation

electric

Features

height-adjustable, ultra-low

Component

with locking wheels, on casters

Number of sections

4-section

Height

Max.: 650 mm
(25.59 in)

Min.: 350 mm
(13.78 in)

Width

83 cm
(32.7 in)

Length

188 cm
(74 in)

Weight capacity

175 kg
(385.8 lb)

Description

Product overview
The YA-D3-4 electric hospital patient bed is a 3-function bed designed for routine patient care in hospitals, clinics and medical centers. It provides electric adjustment of the backrest, foot section and overall bed height through a hand remote control. The ultra-low starting height, collapsible aluminum side rails and stable frame improve patient safety and handling in general care wards and rehabilitation units.

Main features

Ultra-low bed profile with adjustable height 350–650 mm
Three electrical movements: backrest, foot section and high/low
Collapsible aluminum side rails with 6 bars
Hand-held remote control (wired)
Detachable ABS headboard and footboard with easy lock
125 mm casters with diagonal locking and corner bumper casters
Auto-counter mechanism to reduce patient sliding toward the foot end
Safe working load: 175 kg

Accessories

Height-adjustable IV stand
Urine/drainage bag hook
Hand remote controller

Technical parameters

Model: YA-D3-4
Overall size (L×W×H): 2130 × 970 × 350–650 mm
Lying area: 1880 × 830 mm
Back section: 0–75°
Foot section: 0–40°
Height adjustment range: 350–650 mm
Safe loading capacity: 175 kg
Caster diameter: 125 mm with diagonal locking
Main materials: cold-rolled steel frame, 4-section steel platform, ABS head/footboard, aluminum side rails
Motor: Jiechang

Additional information

Color options: Green, Blue, Wood finish
Warranty: 3 years on frame and welds; 1 year on parts
Certificates: CE, ISO
After-sales: online technical support
Customization: available on request
