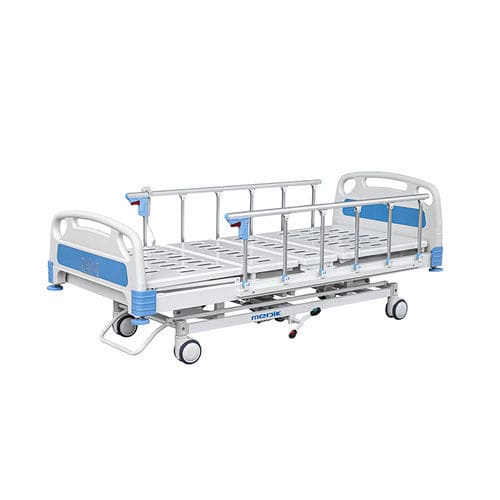

Intensive care bed YA-D5-8
hospitalelectricTrendelenburg

Intensive care bed - YA-D5-8 - Zhangjiagang Medi Medical Equipment - hospital / electric / Trendelenburg

Intensive care bed - YA-D5-8 - Zhangjiagang Medi Medical Equipment - hospital / electric / Trendelenburg

Intensive care bed - YA-D5-8 - Zhangjiagang Medi Medical Equipment - hospital / electric / Trendelenburg - image - 2

Intensive care bed - YA-D5-8 - Zhangjiagang Medi Medical Equipment - hospital / electric / Trendelenburg - image - 3

Intensive care bed - YA-D5-8 - Zhangjiagang Medi Medical Equipment - hospital / electric / Trendelenburg - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

hospital, intensive care

Operation

electric

Features

height-adjustable, Trendelenburg, reverse Trendelenburg

Component

on casters, with locking wheels

Number of sections

5-section

Height

Max.: 750 mm
(29.53 in)

Min.: 550 mm
(21.65 in)

Width

96 cm
(37.8 in)

Length

210 cm
(82.7 in)

Weight capacity

200 kg
(440.9 lb)

Description

Product overview
The YA-D5-8 is a 5-function electric hospital bed intended for ward and intensive care use. It offers precise patient positioning, user-friendly hand control and integrated steering to simplify handling in clinical environments.

Main features

Bed frame: electrophoresis and powder coating for corrosion resistance
Bed platform: MS perforated ventilated platform, molded
Hand controller: wired remote for all electric functions
Side rails: collapsible aluminum rail with 6 bars
Head and foot boards: detachable ABS panels
Castors: 125 mm with central brake system
Directional steering: fifth wheel for easy maneuvering

Functions

Adjustable backrest (0°–75°)
Adjustable knee/foot section (0°–40°)
Height adjustment (550–750 mm)
Trendelenburg position (0°–12°)
Reverse Trendelenburg (0°–12°)

Technical parameters

Model: YA-D5-8
Overall size: 2100 × 960 × 550 mm
Height adjustment: 550–750 mm
Backrest angle: 0°–75°
Knee board angle: 0°–40°
Trendelenburg / Reverse: 0°–12°
Castor diameter: 125 mm (5”)
Loading capacity: 200 kg

Additional information

Certificates: ISO, CE
Available colors: Green, Blue, Yellow
Motor: Jiechang standard (Linak, Timotion, Dewert options)
Warranty: 3 years on frame and welds; 1 year on parts
After-sale service: online technical support
Customization: available on request

Specifications

Model: YA-D5-8
Bed frame finish: electrophoresis and powder coating
Platform: MS perforated platform with ventilation holes
Head & foot boards: detachable ABS
Side rails: collapsible aluminum, 6 bars
Control: wired hand remote for all electric functions
Fifth wheel: directional steering wheel for easier maneuvering
Castors: 125 mm with central locking brake
Load capacity: 200 kg
Certificates: ISO/CE
Motor options: Jiechang (standard); Linak, Timotion, Dewert (options)
Warranty: 3 years on frame/welds; 1 year on parts
After-sale: online technical support
Colors: Green / Blue / Yellow
