Zhangjiagang Medi Medical Equipment

Hospital bed YA-D3-2
manualelectricheight-adjustable

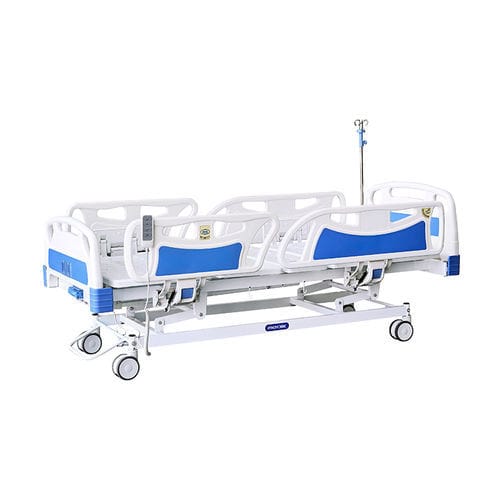

Hospital bed - YA-D3-2 - Zhangjiagang Medi Medical Equipment - manual / electric / height-adjustable

Hospital bed - YA-D3-2 - Zhangjiagang Medi Medical Equipment - manual / electric / height-adjustable

Hospital bed - YA-D3-2 - Zhangjiagang Medi Medical Equipment - manual / electric / height-adjustable - image - 2

Hospital bed - YA-D3-2 - Zhangjiagang Medi Medical Equipment - manual / electric / height-adjustable - image - 3

Hospital bed - YA-D3-2 - Zhangjiagang Medi Medical Equipment - manual / electric / height-adjustable - image - 4

Add to favorites

Compare this product

Go to the Zhangjiagang Medi Medical Equipment website for more information

Characteristics

Applications

hospital

Operation

electric, manual

Features

height-adjustable

Component

on casters

Number of sections

3-section

Height

Max.: 770 mm
(30.31 in)

Min.: 520 mm
(20.47 in)

Width

110 cm
(43.3 in)

Length

223 cm
(87.8 in)

Weight capacity

205 kg
(451.9 lb)

Description

Product overview
YA-D3-2 is an electric 3-section hospital bed with a manual crank backup for adjustments in case of power loss or motor failure. It is designed for clinical and long-term care environments where reliable mechanical fallback and modular accessories are required.

Key information

Model: YA-D3-2
Overall size: 2230 × 1100 × 520–770 mm
Safe working load: 205 kg
Functions: back section adjustable (0°–75°), knee section adjustable (0°–40°), height adjustment
Backup: manual crank for back, knee and height adjustments
Colour options: Green, Blue, Wood finish
Motor: Jiechang (optional Linak / Timotion / Dewert)
Warranty: 1 year
Service: online technical support
Customization: available
Certificates: CE, ISO

Specification

MS perforated platform with ventilation holes, molded
Full-length split side rails with safety gap
Manual crank backup for back, foot section and height
Detachable head and foot boards with secure locks
Central brake system; caster diameter 125 mm
Urine bag hooks on both sides
Bumpers on four corners for protection
Adjustable IV pole and IV pole holders

Technical parameters
Model: YA-D3-2
Size (L×W×H): 2230 × 1100 × 520–770 mm (87.8" × 43.3" × 20.4"–30.3")
Lying surface: 2045 × 900 mm (80.5" × 35.4")
Overall height range: 520–770 mm (20.4"–30.3")
Back section angle: 0°–75°
Knee section angle: 0°–40°
Safe working load: 205 kg (451 lbs)

Standard accessories

Head/Foot boards: 2 pieces
Side rails: 4 pieces
Bed frame: 1 set
Bed boards: 4 pieces
Casters: 4 pieces
IV pole holder: 4 pieces
IV pole: 1 piece
Drainage bag holders: 2 pieces
